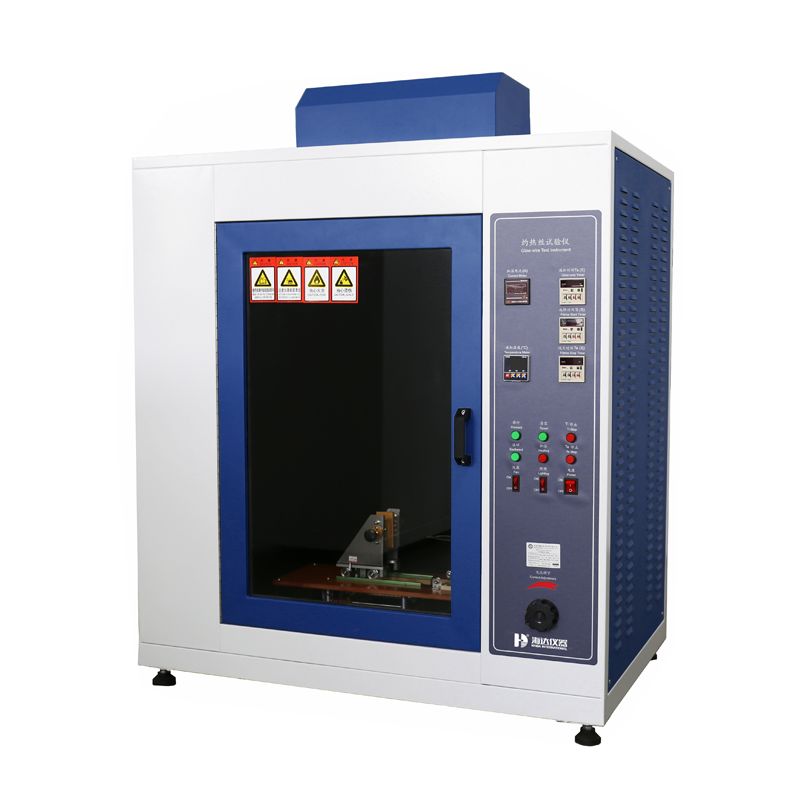

Button-Controlled Glow Wire Test Machine with AC 220V Power Supply

Großes Bild : Button-Controlled Glow Wire Test Machine with AC 220V Power Supply

Produktdetails:

Herkunftsort:	China
Markenname:	Haida
Zertifizierung:	CE,,ISO
Modellnummer:	6001-HD

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	Verhandelbar
Verpackung Informationen:	Jedes Set mit Harzfaser und PP-Film geschützt, dann in starke Holzgehäuse mit Operation Mann
Lieferzeit:	20 Tage nach Bestellbestätigung
Zahlungsbedingungen:	Akkreditiv, T/T, D/A, D/P, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	300 Stück pro Monat

Kontakt

Button-Controlled Glow Wire Test Machine with AC 220V Power Supply

Beschreibung

Volumen der Kammer:	≥ 0,5 Kubikmeter, mit einer Glasüberwachungstür ausgestattet	Raumbeleuchtung:	weniger als 20 Lux
Kraft, die durch Leuchtdraht auf die Probe ausgeübt wird:	0.95 ± 0,10N, mit einer Einsetztiefe von 7,0 mm ± 0,5 mm	Verall Abmessungen (L × W × H):	1015×650×1300 mm (einschließlich Rollenhöhe)
Stromversorgung:	Wechselstrom 220V,50Hz,1KVA
Hervorheben:	Button-Controlled Glow Wire Test Machine , Glow Wire Test Machine

Glow-Wire Test Instrument

In fault or overload conditions, components or parts may reach excessive temperatures or ignite nearby components.

The glow-wire test simulates the thermal stress caused by a glowing element, overloaded resistor, or similar heat or ignition source over a short period. It is used to assess the fire hazard risk using simulation techniques.

This test applies to electrical and electronic products, components, household appliance parts made of plastics, and non-metallic insulation materials, such as switch casings and relay sockets.

IEC60695-2-10 / 11 / 12 / 13, IEC60884-1, GB2099.1, IEC60335-1, GB4706.1, VDE0620-1, UL60065, GB/T5169.10 / 11 / 12 / 13, IEC60950, GB4943-2022

Model	6001-HD
Chamber Volume	≥0.5 cubic meters, equipped with a glass observation door
Chamber Illumination	Less than 20 LUX
Glow-Wire Temperature	Adjustable from ambient temperature +10ºC to 1000ºC, measured using a Ø1mm nickel-chromium (K-type) imported thermocouple
Force Applied by Glow-Wire on Sample	0.95 ± 0.10N, with an insertion depth limit of 7.0mm ± 0.5mm
Glow-Wire Material	Nickel/chromium alloy (>77% Ni / 20±1% Cr), with a pre-bending diameter of 4.0 ± 0.07mm; other dimensions conform to standard tolerance requirements
Timer	Adjustable from 0 to 99 minutes 99 seconds, with a resolution of 0.01 seconds. Records ignition time (Ta), flame persistence time (Ti), and flame extinction time (Te)
Wooden Board	White pine board, thickness >10mm, positioned 200±5mm below the sample's contact point with the glow-wire.
Product Features	Fully automated control system: Once started, the sample-holding carriage automatically moves the sample to the glow-wire and returns it after the preset glow duration.
	Black background interior for easy observation.
	Equipped with an exhaust system and lighting.
	Digital display for time and temperature, ensuring convenient observation and recording.
verall Dimensions (L×W×H)	Approx. 1015×650×1300mm (including caster height)
Power Supply	AC 220V,50Hz,1KVA

Moel6001
