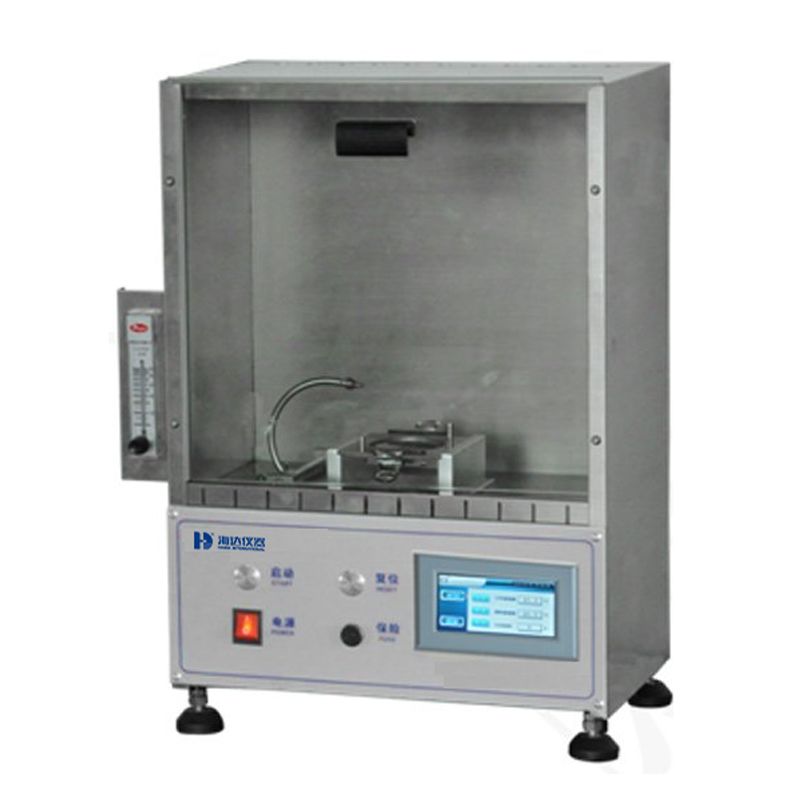

Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010

Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010
Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010 Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010

Großes Bild :  Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010

Produktdetails:
Herkunftsort: China
Markenname: Haida
Zertifizierung: CE,,ISO
Modellnummer: 6025-HD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: Verhandelbar
Verpackung Informationen: Jedes Set mit Harzfaser und PP-Film geschützt, dann in starke Holzgehäuse mit Operation Mann
Lieferzeit: 20 Tage nach Bestellbestätigung
Zahlungsbedingungen: Akkreditiv, T/T, D/A, D/P, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 300 Stück pro Monat

Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010

Beschreibung
Kontrolle: PLC + 5" Farb-Touchscreen Brenner: US-Herstellung Nadel Nr. 18 (konform mit ASTM D4151-2010 § 6.3-6.4)
Automatische Zeitgestaltung: 0.1s Auflösung Zündzeit: 0-99,99s einstellbar
Test-Modi: Zeitgesteuerte Zündung/Flammeinschlag Musterhalter: Einheitliche Prüfungen
Gas: Butan (chemisch rein) Markierungsfaden: 11.7tex3 weiße Baumwolle
Gewicht: 30 ± 5 g Abmessungen: 600 × 400 × 370 mm
Stromversorgung: AC 220V, 50Hz
Hervorheben:

Blankets Flammability Tester

,

Blankets Flammability Testing Machine

Blanket Flammability Tester

Product Description



Blanket Flammability Tester evaluates the flame resistance and surface flame spread characteristics of blanket fabrics. The test method involves exposing specimens to a standardized flame for a specified duration, then assessing the burning degree, damage, or discoloration of standard test paper to grade the fabric's performance.



Test Standard



ASTM D4151 Standard Test Method for Flammability of Blankets



Product Specifications
Model 6025-HD
Control PLC + 5" color touchscreen
Burner US-made No.18 needle (ASTM D4151-2010 §6.3-6.4 compliant)
ASTM-specified micro gas flow valve (0-50mL/min)
Chamber 520(H)×375(W)×220(D)mm stainless steel, 12ר12.7mm vents, glass window (ASTM D4151-2010 §6.1)
Auto-timing 0.1s resolution
Ignition time 0-99.99s adjustable
Test modes Timed ignition/Flame impact
Brush device 0.41mm nylon bristles (20 strands/cluster, 4 clusters/25mm, 19mm length) per ASTM D4151-2010 §6.5
Sample holder ASTM D4151-2010 §6.2 compliant
4.11 Includes 16mm flame/8mm ignition distance templates
Gas Butane (chemically pure)
Marker thread 11.7tex3 white cotton
Weight 30±5g
4.21 Cloud data/control options (as above)
Dimensions 600×400×370mm
Power AC220V/50Hz, 50W
Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010 1

 Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010 2
Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010 3



Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010 4

Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010 5

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined





FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
