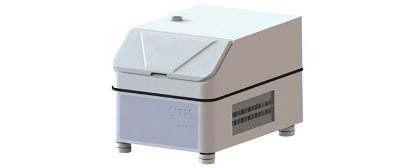

EQUIPMENT DETAILS OF 5097-HD WATER VAPOR PERMEABILITY TESTER(CUP METHOD)
--Picture for reference
PRODUCTS DESCRIPTION
This product is based on the water vapor transmission test principle of the gravimetric method (weight gain method + weight loss method), and provides a wide range and high efficiency water vapor transmission rate testing test for low, medium and high water vapor barrier materials. It is suitable for the water vapor transmission performance test of films, sheets, paper, fabrics, non-woven fabrics and related materials in the fields of food, medicine, medical equipment, and daily chemicals.
TEST STANDARD
GB 1037,GB/T 16928,ASTM E96,ASTM D1653,TAPPI T464,ISO 2528,DIN 53122-1,JIS Z0208,YBB 00092003
FEATURES
1. Based on the cup method test principle, it is a professional water vapor transmission rate (WVTR) test system for film samples, which can detect the water vapor transmission rate as low as 0.1g/m2·24h
2. The configured high-resolution weighing sensor provides excellent system sensitivity under the premise of ensuring high precision
3. The lifting and weighing of the moisture-permeable cup is controlled by a micro motor, and the data is accurate and reliable
4. The standard blowing wind speed can effectively prevent the formation of humidity gradient above the moisture-permeable cup and ensure the accuracy of the test
5. The system automatically resets before weighing to ensure the accuracy of each weighing, and supports a wide range of power access
6. The temperature and humidity test socket that can be quickly connected is convenient for users to perform quick calibration
7. Provide two quick calibration methods of standard film and standard weight to ensure the accuracy and versatility of the test data
8. Wide range, high precision, automatic temperature and humidity control, to meet the test under various test conditions
9. The precise mechanical design not only ensures the ultra-high precision of the system, but also greatly improves the detection efficiency
10. Multi-level user authority settings, test data integrity and other functions to meet GMP related test requirements (optional)
11. Test results support multi-format storage and data output
12. Support various functions such as convenient historical data query, comparison, analysis and printing
STANDARD FEATURES
|
Item
|
Description
|
|
Test Range
|
0.1-10,000 g/ m2•24h (Regularl)
|
|
Test accuracy
|
0.01 g/ m2 24h
|
|
System resolution
|
0.0001g
|
|
Temperature control range
|
15℃-55℃
|
|
Temperature control accuracy
|
±0.1℃
|
|
Humidity range
|
90%RH-10%RH note (standard 90%RH)
|
|
Humidity Control Accuracy
|
±1%RH
|
|
Standard wind speed
|
0.5-2.5 m/s (non-standard optional)
|
|
Sample size
|
Φ74mm
|
|
Permeable area
|
33 cm2
|
|
Sample quantity
|
1-3 (data are independent)
|
|
Sample thickness
|
≤3 mm (thicker need to add accessories)
|
|
Test volume
|
30L
|
|
Carrier gas
|
Compressed air/dry nitrogen
(gas source provided by the user)
|
|
Connection size
|
Φ6 mm polyurethane tube
|
|
Dimensions
|
660mm (L) × 480mm (W) × 525mm (H)
|
|
Power supply
|
AC 220V 50Hz
|
|
Net weight
|
70Kg
|
