5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Großes Bild : 5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Produktdetails:

Herkunftsort:	CHINA
Markenname:	Haida
Zertifizierung:	CE,,ISO
Modellnummer:	5083-HD

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	Verhandelbar
Verpackung Informationen:	Jeder Satz geschützt mit Harzfasern und PP -Film und dann mit Operation Man in eine starke hölzerne
Lieferzeit:	20 Tage nach Bestellung bestätigt
Zahlungsbedingungen:	L/C, T/T, D/A, D/P, Western Union, Moneygram
Versorgungsmaterial-Fähigkeit:	300 Sätze pro Monat

Kontakt

5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Beschreibung

Messwinkel:	20°/ 60°/ 85°	Schnittgeschwindigkeit:	100 ~ 3000 mm/min einstellbar
Maximale Verarbeitungsbreite:	300 mm	Schneckenhub:	90 mm
Zeitgenauigkeit:	0,1s	Maximaler Injektionsvolumen:	40g
Zylinder:	Durchmesser9.5504 ± 0,0076 mm	Gewicht:	Abhängig vom spezifischen Modell
Rohrdurchmesserbereich:	Φ2-Φ2000 mm	Schälwinkel:	90 °
Zeitspanne:	0-10000 h	Injektionskapazität:	40 x 65 cm3
Hervorheben:	5083-HD leak test machine , leak test machine 300mm width , plastic test equipment with injection

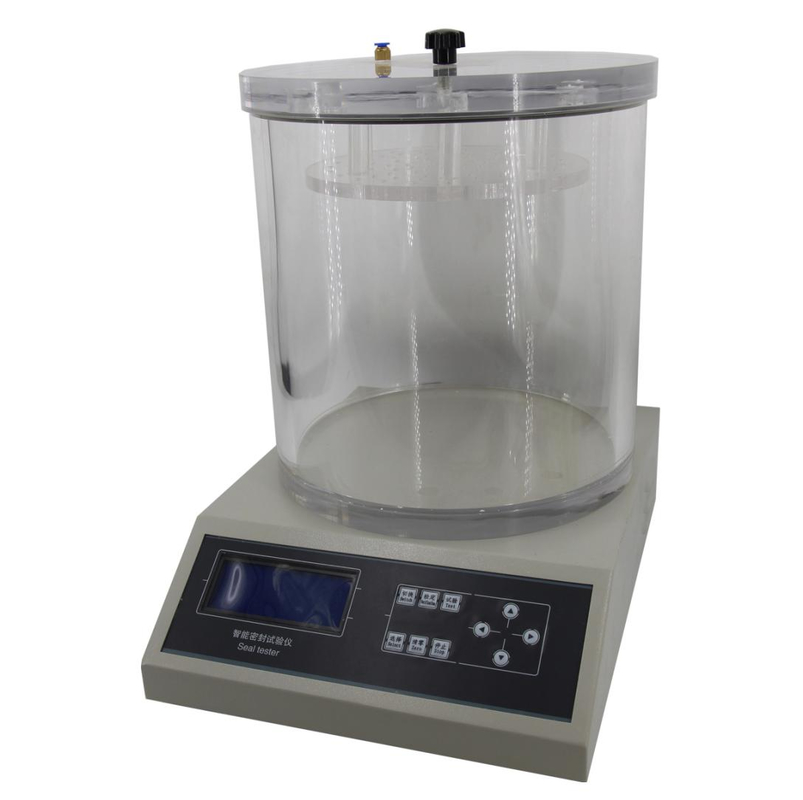

5083-HD Leak Test Machine (Vacuum Tester)

Product Description

This leak test machine is suitable for sealing tests of bottles, pipes, cans, and boxes in various industries including food, pharmaceutical, medical equipment, daily chemical, automotive, electronic components, and stationery. It can also evaluate sealing performance after impact tests and pressure resistance tests.

Design Standard

ASTM D3078, GB/T 15171

Test Principle

By evacuating the vacuum chamber, the sample immersed in water generates a pressure difference between inside and outside, allowing observation of gas escape to determine sealing performance
Through vacuum chamber evacuation, the sample develops internal/external pressure difference, enabling observation of sample expansion and shape recovery after vacuum release to assess sealing capability

Technical Parameters

Item	Description
Vacuum Density	-90-0kPa
Accuracy	± 0.1kPa
Pressure speed	1m/s

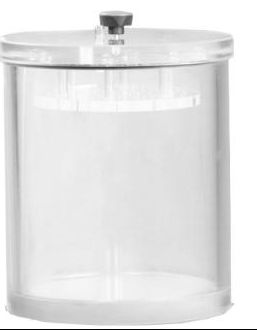

Available Vacuum room Size	Standard: Φ270mm*210mm(H) (other sizes available)
Air pressure	0.7MPa (user-provided)
Gas Source interface	Φ6PU pipe
Control ways	Microcomputer control, automatic test
Display ways	LCD display
Power	AC 220V 50Hz (AC110V 50HZ)
Standard Configuration	Main unit, experimental sealed barrels, power cords
Net Weight	16kg
Dimensions	(LWH) 420320520mm

About Haida International Equipment Co., Ltd

Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida International Equipment Co., Ltd specializes in the production and R&D of various material physical properties testing equipment. We maintain our own independent research and development center and operate four testing equipment production lines: textile, footwear, leather, and mask. Since 2006, our testing equipment has been in production and successfully entered international markets.

Why Choose Haida?

Design & Production: Solution consultation for each order, recommendation of most cost-effective machines, and R&D for special-designed models
Shipping & Delivery: One-stop service from production to door delivery, including installation, training, and technical support
Warranty: 1 year warranty with lifetime technology support
After-Sale Service: 2-hour response time with video inspection and on-site service options

Frequently Asked Questions

Q: How about your warranty?

A: Our standard warranty is one year. During this period, we provide technical support and replacement parts as needed. For complex issues, our engineers may visit your location for service.

Q: What is the order process?

A: Our process includes: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.

Q: Can we visit your factory before ordering?

A: Yes, we warmly welcome visits and can assist with hotel arrangements and airport transfers.

Q: Do you accept customization service?

A: Absolutely. We offer both standard machines and customized solutions tailored to your specific requirements.
