Produktdetails:
|
| Verwendung: | Qualitätskontrolle und Prüfung | Transformatorkapazität: | 1000va |
|---|---|---|---|
| Aufprallgeschwindigkeit: | 3.4 m/s | Rollbahn: | Länge 100 mm |
| Externe Größe: | 900*500*800 (W*D*H) | Auftreffwinkel: | 90 Grad |
| Temperaturprüfung: | Raumtemperatur zu 200°C | Dimension: | 650 mm × 400 × 830 mm |
| Zeitspanne: | 3min (kann beliebig eingestellt werden) | Strommessungsstrecke: | 10pA ~ 1mA |
| Befestigungslast: | 2.5N | Ozon produzierter Modus: | Ozon-Generator oder UVabsorptionsverfahren |
| horizontal: | 500 mm * 250 mm * 500 m | Probendichtungsbereich: | 0 bis 60 mm |
| Exemplargröße: | 16mm, 6-15mm (d) | Beobachter: | CIE 10° Standardbeobachter |
| Spezifikation: | 20-88HRA, 20-100HRB, 20-70HRC | Druckentschließung: | 0.001Mpa (0,01bar oder 1 PSI) |
| Prüfmodus A: | Raumtemperatur | Anzeige: | Digital |
| Testgeschwindigkeit: | Einstellbar | Ballgewicht: | 5 kg |
| Außendimension: | 95x150x105cm | Schlaganfall: | 25mm |
| Temperatur Gleichmäßigkeit: | ± 2 ℃ | Kontrolle der Genauigkeit: | ±0,2°C |
| Hervorheben: | Thermal Conductivity Rubber Plastic Tester,research Rubber Plastic Tester,High Precision Rubber Plastic Tester |
||

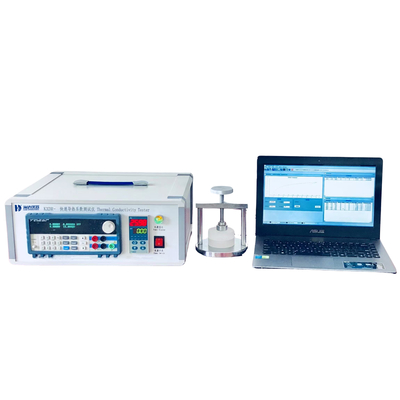

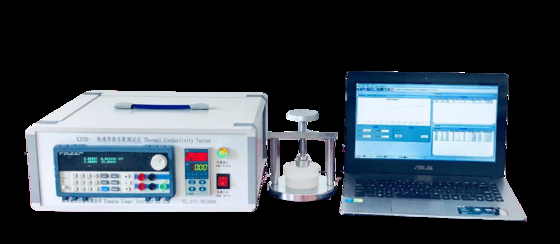

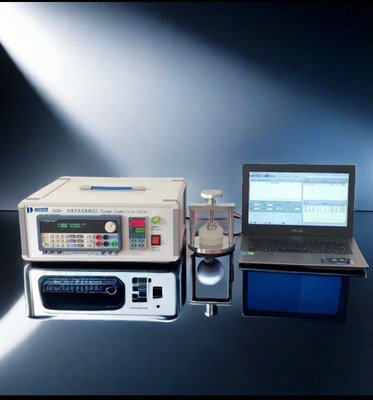

HD-KDRX-II Thermal Conductivity Tester
(Hot Wire Method)
![]()
Technical Parameters
| Item | Parameters |
| Thermal conductivity range | 0.0001~50 W/mK; resolution: 0.0001w/mk |
| Measurement relative error | ≤3% |
| Repeatability error | ≤3% |
| Temperature resolution | 0.01℃ |
| Measuring time | 2~180 seconds |
| Sample test temperature range |
Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
| Tested samples | Plastic, soil, soft rock, liquid; paste, granule, powder and other materials |
| Sample shape | Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required |
| Sample size |
Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm |
| Control mode | By computer and software |
| Machine dimension | (L*W*H)380*400*165mm |
| Machine weight | Approx. 5KG |
| Power | AC 220V±10%, 50/60 Hz, 200W |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ
Q: How about your warranty?
Q: What is the order process?
Q: Can we visit your factory before order?
Q: Do you accept customization service?
