5125-HD Burning Test Machine with Adjustable Armrests

5125-HD Burning Test Machine with Adjustable Armrests
5125-HD Burning Test Machine with Adjustable Armrests 5125-HD Burning Test Machine with Adjustable Armrests

Großes Bild :  5125-HD Burning Test Machine with Adjustable Armrests

Produktdetails:
Herkunftsort: CHINA
Markenname: Haida
Zertifizierung: CE、ISO
Modellnummer: 5125-HD
Zahlung und Versand AGB:
Min Bestellmenge: 1 Set
Preis: Verhandelbar
Verpackung Informationen: Jeder Satz geschützt mit Harzfasern und PP -Film und dann mit Operation Man in eine starke hölzerne
Lieferzeit: 20 Tage nach Bestellung bestätigt
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 300 Sätze pro Monat

5125-HD Burning Test Machine with Adjustable Armrests

Beschreibung
Material: Stahl Optionale Funktionen: Anpassbare Ladekapazität und Abmessungen
Stichwort: Möbelprüfmaschine Leistung: Elektronisch
Testmethode: Dynamische und statische Lasttests Stromversorgung: AC/DC
verwenden: Stuhl Typ: Testausrüstung
Einheitsschalter: gf, kgf, N, lbF, W, KN, T Fahrmodus: variabler Frequenzmotor und Zahnriemen
Stromquelle: Strom LCD -Anzeige: Ja
mit einer Breite von nicht mehr als 20 mm: Ja
Hervorheben:

5125-HD Burning Test Machine

,

Burning Test Machine with Adjustable Armrests

5125-HD Burning Test Machine

 5125-HD Burning Test Machine with Adjustable Armrests 0

EQUIPMENT DETAILS













APPLICATIONS & TEST PURPOSE:

This device is suitable for determining the non-flammability performance of samples under direct burning by specified fire sources.

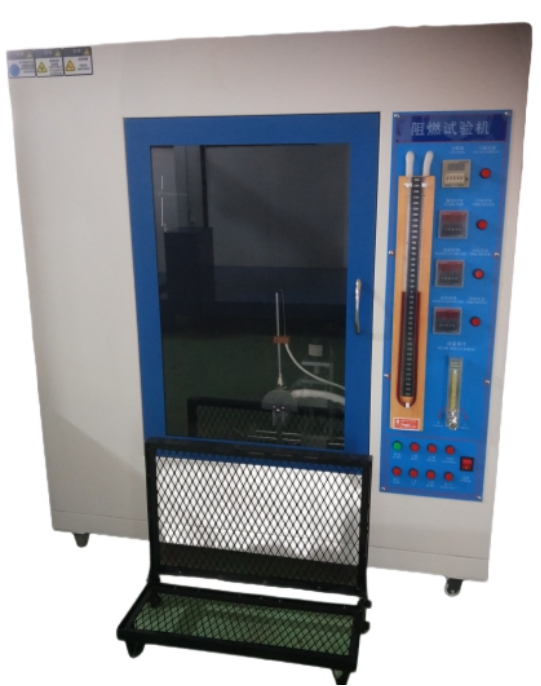

The device consists of a control panel, air box, combustion nozzle, solenoid valve, high-voltage igniter, sample holder, gas pipe, gas source, flow meter, U-shaped manometer, and signal control lines (as shown in Figure 1). The entire combustion test process of this machine is fully automated, such as electronic ignition, flameout time, combustion time, and number of combustions can all be automatically completed.



STANDARD: ISO 7176-10.8;GB/T 18029.10-2009





STANDARD FEATURES

Item

Specification

Nozzle inner diameter

6.5mm

Length

200+10mm

Test inclination angle

20,45,90 degrees with manual switching

Flame height

adjustable from 20mm to 175mm

Flame application time

adjustable from 0-999.9s+0.1s

Afterflame time

0-999.9s+0.1s,automatically recorded, manually paused

Afterbum time

0-999.9s+0.1s,automatically recorded, manually paused

Combustion gas

98% methane gas or 989 propane gas (usually liquefied petroleum gas can be used as a substitute)

Flow and pressure

flow meter and U-shaped pressure gauge

Test background

black background

Test process

manual control of the test program, independent ventilation

Chamber volume: 0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable)

Chamber volume

0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable)

Cabinet material

mirror stainless steel

Equipment dimensions

1000mm x 650mm x 1300mm(L*W*H)



5125-HD Burning Test Machine with Adjustable Armrests 1
