Produktdetails:
|
Designstandards: | ASTM D646, JIS P8124, QB / T 1671 | Betriebsmethode: | Mikrocomputerkontrolle |
---|---|---|---|
Teststandards: | ISO, ASTM, Tappi | Falltest: | Ecken, Kanten, Flächen der Probe |
Verwendung: | Verpackungstests | Farbe: | Optional |
Lastbereich: | 0 ~ 60g (bezeichnet 0 ~ 100 g) | Anwendung: | Pakettest |
REGLER: | SPS -Controller und Touchscreen -Panel | Struktur: | Wechselstromfrequenzumwandlungsmotor (Taiwan); |
Testbereich: | 10 ± 0,05 cm ^ 2 | Genauigkeit der Testkraft: | < ± 1% des Anzeigewerts |
Teststandards: | ISO, ASTM, TAPPI usw. | Genauigkeit: | ± 1% |
Standard: | ASTM D6055 | Einstellung von Testzyklen: | 4 Ziffern voreingestellter Zähler |
Herkunft: | China | Probengröße: | 100 (l) × 63 (w) mm |
Auflösung: | 1/100.000 | Anzeige: | Digital |
Lastzellenauflösung: | 1/250.000 | Reisegeschwindigkeit: | Einstellbar von 20 - 80 mm pro Sekunde |

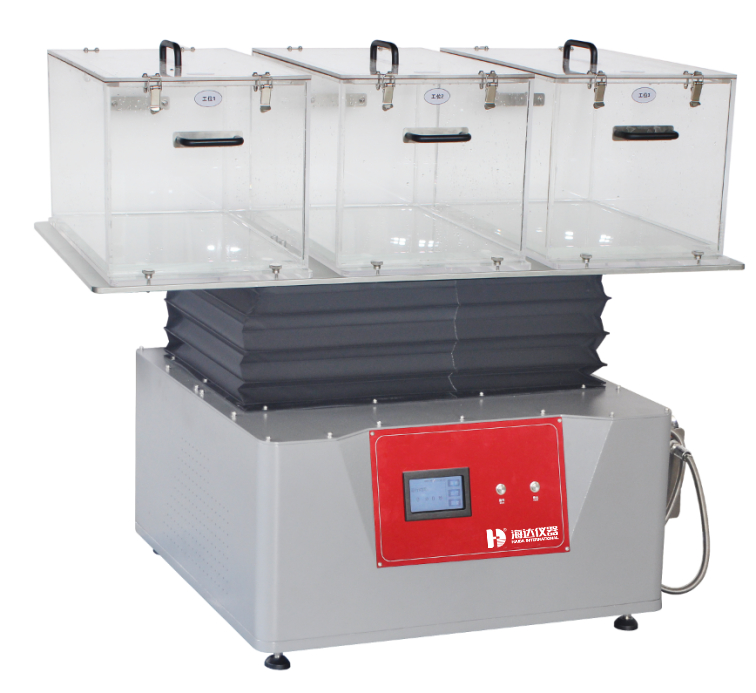

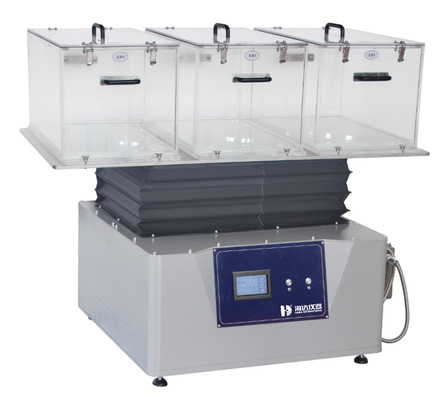

Hervorheben: | 5033-HD Wipes Flushability Tester,Wipes Flushability Tester |
Attribute | Value |
---|---|
Design Standards | ASTM D646, JIS P8124, QB / T 1671 |
Operating Method | Microcomputer Control |
Testing Standards | ISO, ASTM, TAPPI |
Drop Test | Corners, edges, faces of sample |
Usage | Packaging Testing |
Color | optional |
Load Range | 0~60g (designated 0~100g) |
Application | Package Testing |
Controller | PLC controller and touch screen panel |
Structure | AC Frequency Conversion Motor (Taiwan) |
Test Area | 10 ± 0.05cm ^ 2 |
Test Force Accuracy | < ±1% of the display value |
Test Standards | ISO, ASTM, TAPPI, etc. |
Accuracy | ±1% |
Standard | ASTM D6055 |
Test Cycles Setting | 4 digits pre-set counter |
Origin | China |
Sample Size | 100(L)×63(W)mm |
Resolution | 1/100,000 |
Display | Digital |
Load Cell Resolution | 1/250,000 |
Travel Speed | adjustable from 20 - 80 mm per second |
Item | Description |
---|---|
Test speed | 1~50RPM (adjustable) |
Measuring time | 0 ~ 9999 minutes and 59 seconds can be set |
Shaking box | 3 stations |
Shaking box internal dimension (L*W*H) | 430*330*300mm |
Mesh screen | φ200mm |
Mesh | φ12.5mm |
Power | 220V, 50HZ, 500W |
Dimensions(L*W*H) | 1100*600*600mm |
Weight | About 80kg |
