5105-HD Automatic Condom Bursting Volume and Pressure Tester

Großes Bild : 5105-HD Automatic Condom Bursting Volume and Pressure Tester

Produktdetails:

Place of Origin:	china
Markenname:	HAIDA
Zertifizierung:	CE
Model Number:	5105-HD

Zahlung und Versand AGB:

Minimum Order Quantity:	1set
Preis:	Verhandelbar
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,T/T,D/P,Western Union,MoneyGram
Supply Ability:	30 Sets per Month

Kontakt

5105-HD Automatic Condom Bursting Volume and Pressure Tester

Beschreibung

Time Repeatability:	0.01min	Data Output:	Digital Display
Dimensions:	50cm x 30cm x 40cm	Deoxygenation Tube:	Dedicated to ECD detector
Temperature Control Range:	RT+4℃~450℃	Wavelength Repeatability:	±0.1nm
Cooling Speed:	From 300 to 50℃ ≤10min	Test Object:	Powder, Solid, Liquid
Test Time:	100-300 seconds (adjustable)	Ion Source:	EI, EI/CI mixed source, CI (PCI & NCI)
Pyrolysis Time Range:	0.01~99.99min	Rsd:	≤1.5%
Gas Chromatograph:	Equipped with FID & ECD detector	Instrument Resolution:	144±5eV
Wavenumber Range:	7800~375 cm-1
Hervorheben:	5105-HD Automatic Condom Tester , Bursting Volume Condom Tester , Automatic Condom Tester for ECD Detector

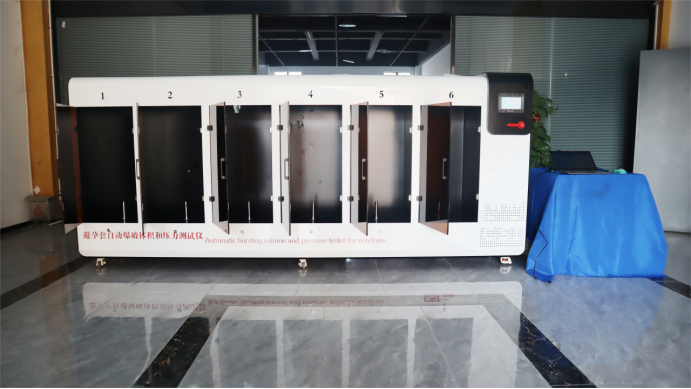

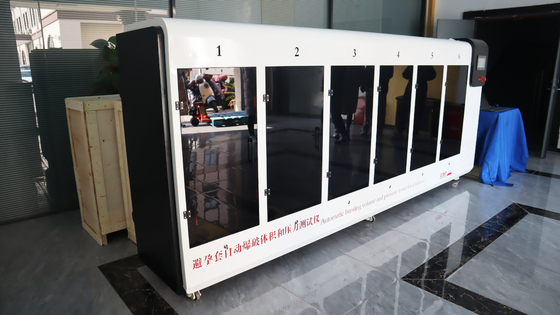

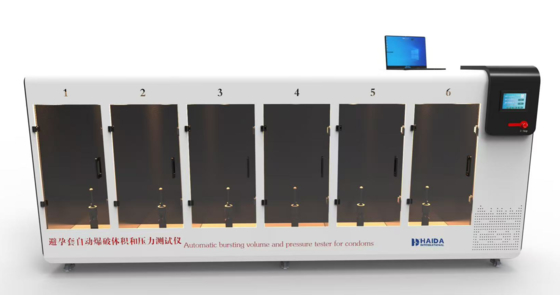

5105-HD Automatic Condom Bursting Volume and Pressure Tester

Product Description

This equipment is designed for determining the bursting capacity and bursting pressure volume of various condoms, rubber gloves, and similar products.

Design Standard

GB7544, ISO4074

Features

Q235 material shell with baking paint treatment for rust prevention
AL surface anodizing treatment for test position materials
Stainless steel foot sampling with good stability and adjustable horizontal function
6MM thick high-temperature resistant tempered glass observation door
Independent pressure and volume calculation control for each workstation

Technical Parameters

Item	Description
Test Position	6
Bursting Volume	(0－60) L
Burst Pressure	(0－15.0)kPa
Bursting Volume Accuracy	≤±3.0%
Burst Pressure Accuracy	≤±0.05kPa
Inflation Rate	(0.4－0.5)dm3/min, (24－30)dm3/min (automatic adjustment)
Pressure Sensor Pressure Range	0-30KPA
Rotation Speed	0-10R/MIN Step-less speed
Position Material	AL surface anodizing treatment
Air Pressure	0.4~0.5mpa
Dimension	36006501500mm
Power	220V,50Hz

About Haida

Founded in 2004, Haida ® is the recognized market leader in Dongguan, China for testing equipment. The company specializes in four main manufacturing series: Accelerated Environmental Series (AES), Universal Tensile Machine (UTM), Paper & Packaging (P&P), and Foam, Furniture & Optical (FFO). Haida also provides testing equipment for Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical applications.
