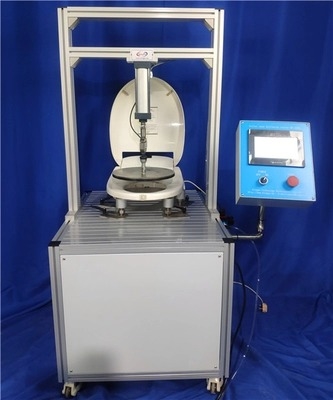

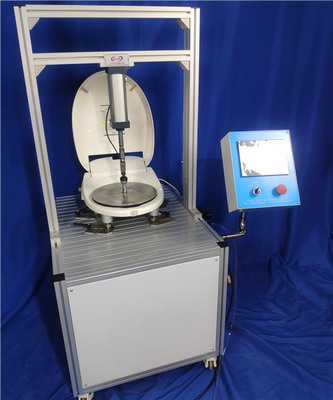

5063-HD IEC 60335-2-84 Toilet Seat Endurance Test Machine
Product Specifications
| Attribute | Value |
| Water temperature maintain | 60±2℃ |
| Tank body material | 2～5 cycles per minute |
| Machine Size | 1350mm*1050mm*2550mm |
| Gross Weight | 210KG |
| Heat source | Ceramic heater |
| Touch screen | LCD |
| Dimensions | 1100mm*532mm*389mm |
| Display | LCD screen |
| Testing Time | Adjustable |
| Reply For Problem | Within 24 hours |
| Leverage | 1 m |
| Test Parameters | Temperature, pressure, weight, etc. |
| Test Results | Quantitative and qualitative data |
| Scale Resolution | 1° |
| Test Load | 50N |
| Power | 1 phase, AC 220V, 50～60Hz |
| Test Stroke | 20~66mm |
| Coating Thickness | 25μm |
| Test Methods | Impact, abrasion, chemical resistance, etc. |
| Scale Display | 1 degree |
| Usage | Testing cookware for durability and safety |
Applications & Test Purpose
The machine is designed primarily for conducting fatigue and strength tests on toilet seat cover plates. It performs repeated tests under preset force values, stroke, displacement, time, and speed conditions to evaluate product quality.
Technical Composition

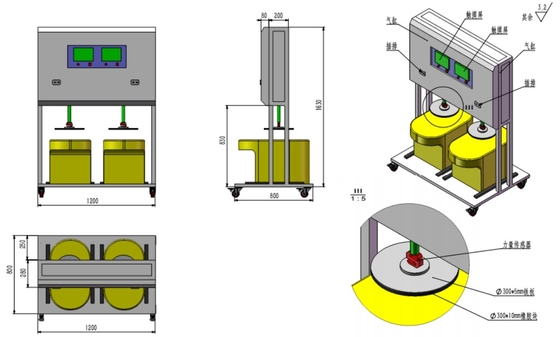

This professional testing device combines cylinders, force value sensors, guide rods, PLC software, touch screen control, magnetic fixture blocks, A3 steel plates, and stainless steel materials for comprehensive toilet seat testing.
Standards Compliance
IEC 60335-2-84:2019; GB/T 4706.53-2024
Standard Features
| Feature | Specification |
| Test Stations | 2 stations (independent operation, no interference) |
| Functional Modes | Group A: Lid load fatigue test, Seat ring load life test
Group B: Seat ring strength & Lid strength test |
| Test Stroke | 0-500mm (PLC programmable) |
| Test Force | 0-4000N (PLC programmable) |
| Force Accuracy | 0.001 grade |
| Sampling Rate | 1/250,000 |
| Test speed | 0-500mm/min (PLC programmable) |
| Control Method | PLC software + touchscreen operation |
| Motion Method | Pneumatic control (up/down movement) |
| Test Duration | 0-99H99M99S (PLC programmable) |
| Delay Function | 0.1-9.95 settable |
| Cycle count | 0-9,999,999 Cycles (PLC programmable) |
| Sample Size | 720x420x800mm(LxWxH) |
| Pressure Plate Config | ①300mm: 5mm steel + 10mm rubber
②76mm rubber disc (19mm thick, Shore hardness 70°) |
| Power supply | 220V/50Hz |
| Equipment Weight | 300kg |
| Dimensions | 1200x800x1630mm |
About Haida International Equipment Co., Ltd
Established in 2004 and located in Dongguan city, Guangdong Province, China, we specialize in the production and R&D of various material physical properties testing equipment. Our facilities include an independent research and development center and four testing equipment production lines: textile, footwear, leather, and mask testing equipment.
Why Choose Haida?
- Design & Production: Custom solution consultation for each order with cost-performance recommendations and special model development
- Shipping & Delivery: One-stop service from production to door delivery, including installation, training, and technical support
- Warranty: 1 year warranty with lifetime technology support
- After-Sale Service: Quick response within 2 hours with video inspection and on-site service options
Frequently Asked Questions
How about your warranty?
Our standard warranty is one year, including technical support and parts replacement. If necessary, our engineers can provide on-site service.
What is the order process?
Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Can we visit your factory before ordering?
Yes, we warmly welcome visits and can assist with hotel arrangements and airport pickup.
Do you accept customization service?
Yes, we offer both standard machines and customized solutions tailored to your specific requirements.
