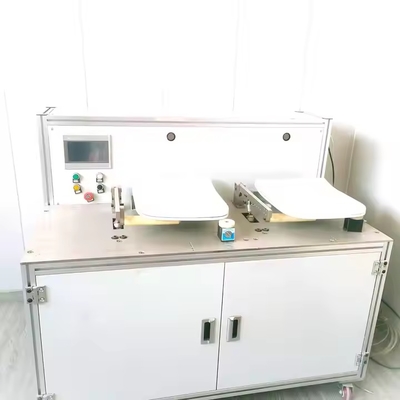

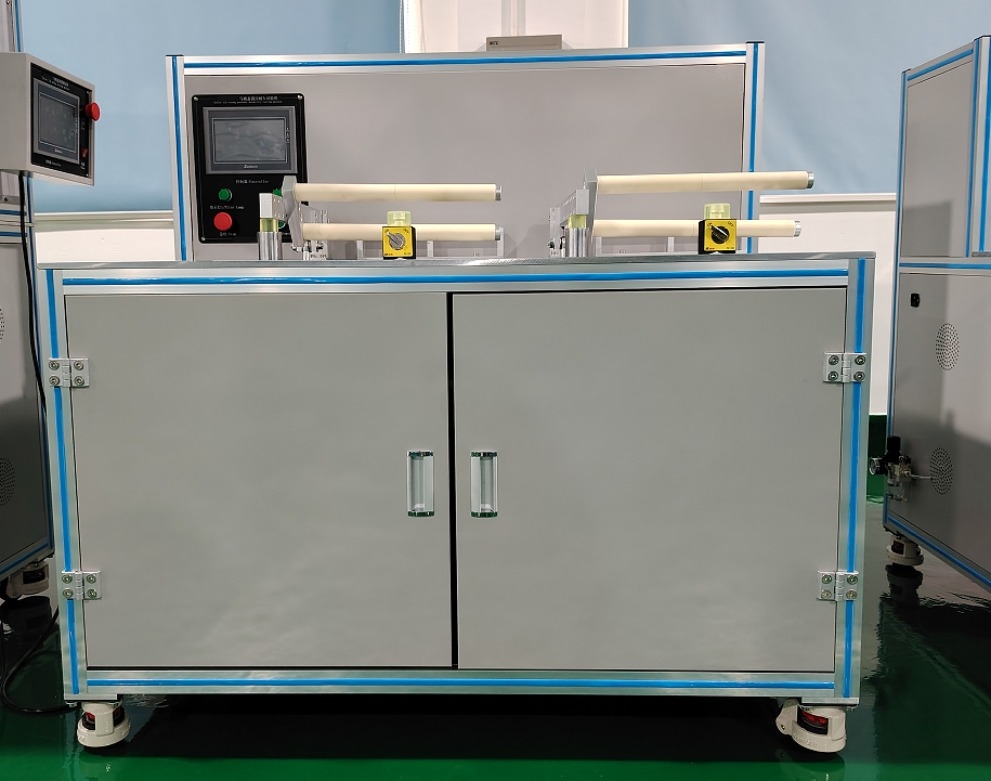

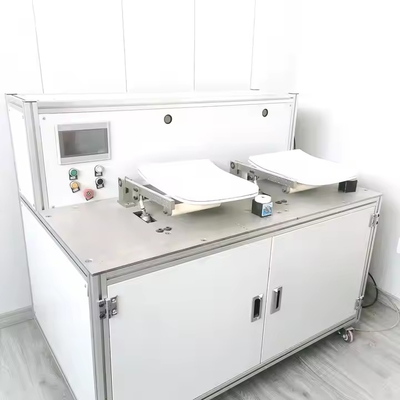

5066-HD Anti-Siphon Test Machine for Cookware Valves

Bescheinigung
CHINA Hai Da Labtester zertifizierungen
CHINA Hai Da Labtester zertifizierungen
Kunden-Berichte
Ja empfingen wir die Maschine letzte Woche. Diese Maschine war nett und dankt den Nachverkäufe serives, war sehr Berufs.

—— Peter Maas

Im Namen der Firma, um Ihre Fabriken und Unternehmen zu besuchen, ist das technische Personal sehr professionell und geduldig, ich denke, ich würde mich freuen, wieder mit Ihnen zusammenzuarbeiten.

—— Steve Hubbard

Ich bin online Chat Jetzt

5066-HD Anti-Siphon Test Machine for Cookware Valves

5066-HD Anti-Siphon Test Machine for Cookware Valves
5066-HD Anti-Siphon Test Machine for Cookware Valves 5066-HD Anti-Siphon Test Machine for Cookware Valves 5066-HD Anti-Siphon Test Machine for Cookware Valves

Großes Bild :  5066-HD Anti-Siphon Test Machine for Cookware Valves

Produktdetails:
Herkunftsort: China
Markenname: Haida
Zertifizierung: ISO
Modellnummer: 5066-HD
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: Verhandelbar
Verpackung Informationen: Jedes Set ist mit Kunstharzfaser und PP-Folie geschützt und wird dann in einen stabilen Holzkasten m
Lieferzeit: 20 Tage nach Bestellbestätigung
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Bargeld, Treuhand
Versorgungsmaterial-Fähigkeit: 30 Sätze pro Monat

5066-HD Anti-Siphon Test Machine for Cookware Valves

Beschreibung
Wassertemperatur instandhalten: 60±2℃ Behälterkörper matiral: 2~5 Zyklen pro Minute
Maschinengröße: 1350mm*1050mm*2550mm Bruttogewicht: 210kg
Wärmequelle: Keramische Heizung Berührungsbildschirm: Bildschirm
Hervorheben:

Cookware Valves Anti-Siphon Test Machine

,

Anti-Siphon Test Machine

5066-HD Anti-Siphon Performance Test Machine
Product Specifications
Attribute Value
Water temperature maintain 60±2℃
Tank body material 2~5 cycles per minute
Machine Size 1350mm*1050mm*2550mm
Gross Weight 210KG
Heat source Ceramic heater
Touch screen LCD
Applications & Test Purpose

This equipment is dedicated to testing the anti-siphon performance of water inlet valves. It features a transparent container between the sample and vacuum machine to collect water flow during failed siphon tests, protecting the vacuum machine from damage. The vacuum system simulates vacuum states in water supply pipelines to detect siphon phenomena in water inlet valves.

Compliance Standard

ASME A112.18.1-2018 CSA B125.1-18(C) 5.9

Standard Features
Feature Specification
Number of Workstations Single workstation
Test Pressure 0 ~0.1 PA (adjustable), 0.5% full scale accuracy
Pressure Adjustment Manual control
Observation Tube ID 13 mm
Immersion Depth 13 mm
Vacuum Generation Vacuum pump
Test Fixtures Customized per specification (≥2 pcs each)
Timer Range 0-99.99 (Hours, Minutes, seconds)
Dimensions 1000x1000x1600 mm
Power supply AC220V 50HZ
Weight Approx. 120 kg
About Haida International Equipment Co., Ltd

Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida specializes in production and R&D of various material physical properties testing equipment. We have our own independent R&D center and four testing equipment production lines: textile, footwear, leather, and mask. Our testing equipment entered the international market in 2006.

5066-HD Anti-Siphon Test Machine for Cookware Valves 0
5066-HD Anti-Siphon Test Machine for Cookware Valves 1
5066-HD Anti-Siphon Test Machine for Cookware Valves 2
5066-HD Anti-Siphon Test Machine for Cookware Valves 3
5066-HD Anti-Siphon Test Machine for Cookware Valves 4
5066-HD Anti-Siphon Test Machine for Cookware Valves 5
Why Choose Haida?
  • Design & Production: Solution consultation for each order, recommending the most cost-performance machine, with R&D for special-designed models.
  • Shipping & Delivery: One-stop service from production to delivery, including installation, training, and technical support.
  • Warranty: 1 year warranty with lifetime technology support.
  • After-Sale Service: Quick response within 2 hours, with video inspection and on-site service options.
Frequently Asked Questions
Q: How about your warranty?
A: We offer a one-year warranty with technical support and parts replacement. Our engineers may provide on-site service if necessary.
Q: What is the order process?
A: Process includes inquiry, quotation, requirements confirmation, payment, production, testing, packing, documentation, delivery, and after-sales service.
Q: Can we visit your factory before order?
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport pickup.
Q: Do you accept customization service?
A: Yes, we offer both standard and customized machines tailored to your specific requirements.
