Precise Bottle Compression Test Machine 200 Mm/min

Precise Bottle Compression Test Machine 200 Mm/min
Precise Bottle Compression Test Machine 200 Mm/min Precise Bottle Compression Test Machine 200 Mm/min Precise Bottle Compression Test Machine 200 Mm/min Precise Bottle Compression Test Machine 200 Mm/min

Großes Bild :  Precise Bottle Compression Test Machine 200 Mm/min

Produktdetails:
Herkunftsort: China
Markenname: Haida
Zertifizierung: CE、ISO
Modellnummer: 5077-HD
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: Verhandelbar
Verpackung Informationen: Jedes Set ist mit Kunstharzfaser und PP-Folie geschützt und wird dann in einen stabilen Holzkasten m
Lieferzeit: 20 Tage nach Bestellbestätigung
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 300 Stück pro Monat

Precise Bottle Compression Test Machine 200 Mm/min

Beschreibung
Funktion: Druckprüfung name: Becherbecher-Rohr-Druckfestigkeitsprüfer, Papierprüfgerät Papier Grammatur-Tester/Berstfestigkeitspr
Anzeige: LCD,Digitalanzeige Einheiten umschalten: Kgf,N (Optional),Lbf
Testing speed: 10 ~ 200 mm/min Abmessung: 360*264*400mm, 70 *34 * 60 cm, 85*65*80cm
Messbereich: 250-5600 Kpa, 10 ~ 1000 mN Anzeigemodus: LCD-Display, digitaler Modus
Entwurfskriterien: Die in Absatz 1 genannten Anforderungen gelten für die in Absatz 1 genannten Erzeugnisse.
Hervorheben:

Bottle Compression Test Machine

,

Precise Bottle Compression Test Machine

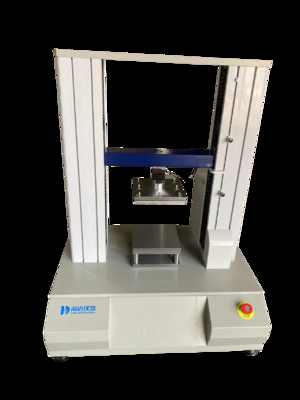

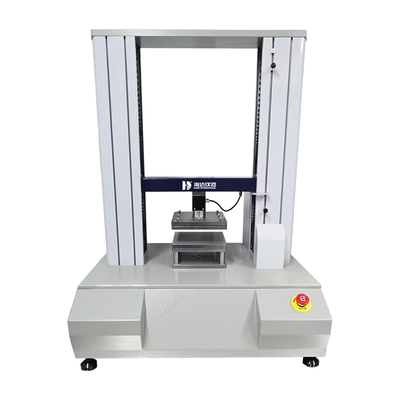

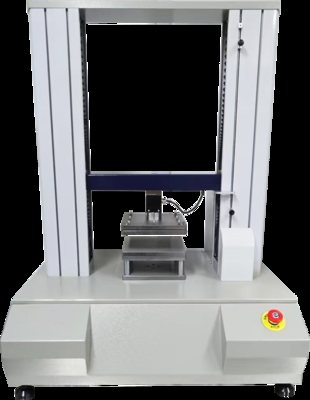

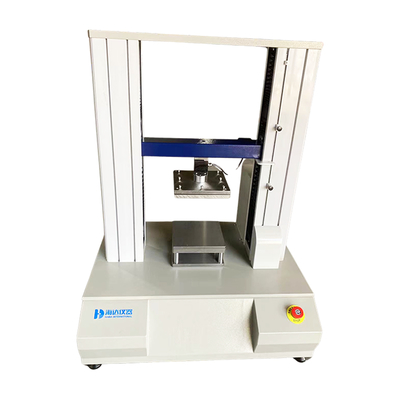

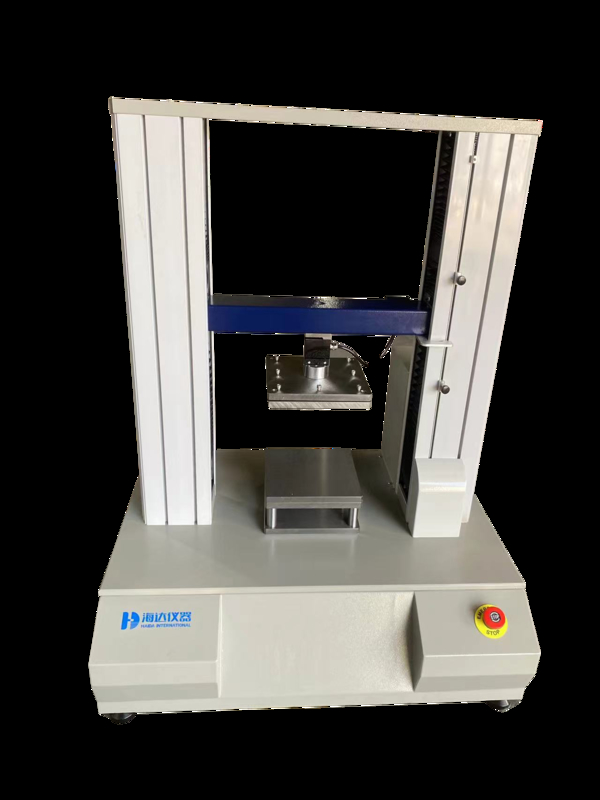

EQUIPMENT DETAILS OF 5077-HD BOTTLE COMPRESSION TEST MACHINE
PRODUCT DESCRIPTION

This instrument is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.

It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.

TEST STANDARD

ISO1924/2, QB/T1670-92, GB/T2914, GB/T 453

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1240 x 840x1320m

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 180kg

MAIN FEATURES
  • Double-column ball screw drive to ensure the high-precision and stable operation of the instrument;
  • The force value test system provides force value accuracy better than 1.0 level, and the test data is accurate;
  • The system is embedded with a USB interface or network port, which is convenient for data transmission and external access of the system.
  • Test speed can be adjusted in the software to adapt different test requirements from customers.
TECHNICAL PARAMETERS
Item Description
Capacity 500kg, imported load cell
Load resolution 1/250,000
Load Precision Within ± 0.5%
Motor 400W Panasonic servo motor
Operation Mode Controlled by PC with software, Windows 10 operation
Test Speed 0.1-500mm/min adjustable
Max. Stroke 600mm (excluding fixture)
Test unit gf/kgf/N/kN/lbf/T
Dimensions (L*W*H)790 x 610 x 1100mm
Weight Approx. 170 kg
Power 1∮, 220V, 500W
The Introduction of Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
