Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

Certified Environmental Test Chamber -70°C to 150°C 10-98% RH
Certified Environmental Test Chamber -70°C to 150°C 10-98% RH Certified Environmental Test Chamber -70°C to 150°C 10-98% RH Certified Environmental Test Chamber -70°C to 150°C 10-98% RH Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

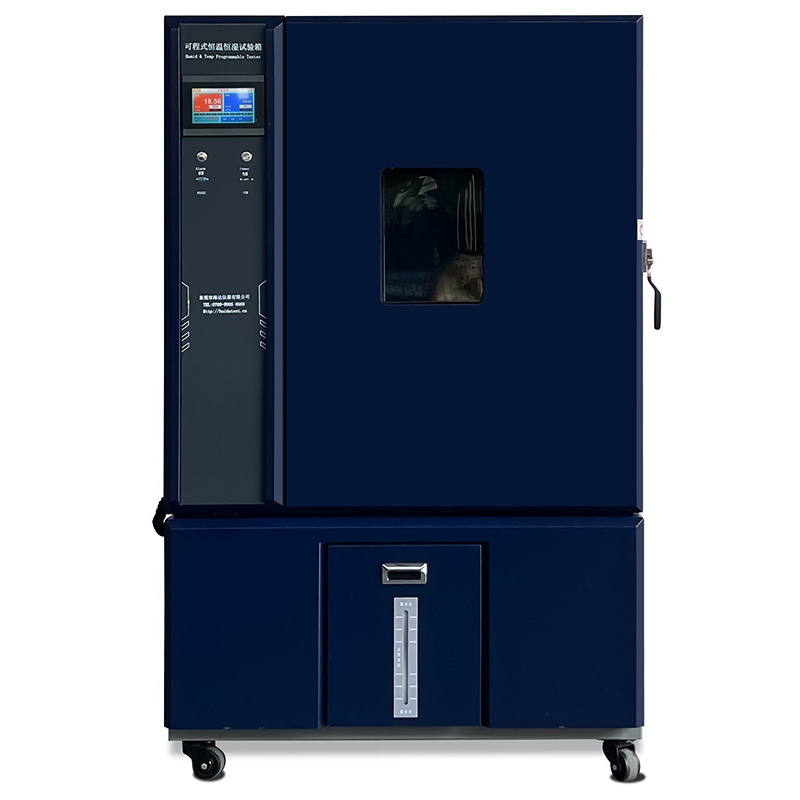

Großes Bild :  Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

Produktdetails:
Herkunftsort: China
Markenname: Haida
Zertifizierung: CE,,ISO
Modellnummer: HD-E702
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: Verhandelbar
Verpackung Informationen: Gutes Holzetui
Lieferzeit: 15 Tage nach Auftrag
Zahlungsbedingungen: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 75 Stück / Stück pro Monat

Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

Beschreibung
Verwendung: Prüfmaschine für konstante Temperatur und Luftfeuchtigkeit Temperaturbereich: -70°C~150°C
Feucht. Strecke: 10~ 98 Prozent r. H. Temp. U. feucht. Genauigkeit: ± 0.3°C; ± 2 Prozent R.H
Temp. U. feucht. Gleichmässigkeit: ± 1°C; ± 3 Prozent relativer Feuchtigkeit Auflösung: 0.01°C, 0,1 Prozent, P.I.D-Steuerung
Heizung oben: -40°C | +100°C innerhalb Minute 45 Heizung unten: 20°C~ -20°Cwithin 40min
Innenmaß (W×D×H): 100×100×80cm Außenmaß (W×D×H): 145x190x135cm
Innenmaterial: Edelstahlplatte (SUS304) Außenmaterial: Edelstahlplatte (SUS304)
Isolierung: Hartschaumstoff Anzeige: Bildschirm
Gewicht: Ca. 600 Kilogramm Leistung: AC220V±10 Prozente 50/60Hz
Hervorheben:

Professional Environmental Test Chamber

,

Stainless Steel Exterior Environmental Test Chamber

Certificated Humidity Temperature Lab Test Machines Environmental Testing Chamber
Product Attributes
Attribute Value
Usage Constant Temperature and Humidity Testing Machine
Temp. range -70°C~150°C
Humid. range 10~98% R.H.
Temp. & Humid. accuracy ±0.3°C; ±2% R.H
Temp. & Humid. regularity ±1°C; ±3% RH
Resolution 0.01°C, 0.1%, P.I.D control
Heating up -40°C ~ +100°C within 45 min
Heating down 20°C~ -20°C within 40min
Interior dimension (W×D×H) 100×100×80cm
Exterior dimension (W×D×H) 145x190x135cm
Interior material Stainless steel plate (SUS304)
Exterior material Stainless steel plate (SUS304)
Insulation Rigid foam
Display LCD
Weight Approx. 600 kg
Power AC220V±10% 50/60Hz
Product Description
Download Product Specifications (PDF)
Environmental Testing Chamber used to test various types of materials for their tolerances of heat, cold, dry, and humidity conditions. It is applied for all types of electronic products, electric appliances, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical, and aerospace industries.
Key Features
  • HD series chambers have temperature change rates from 1 to 3°C per minute
  • Controlled humidity from 10% to 95% RH
  • Available in 6 sizes with interior volumes of 100 to 1000 Liters
  • Tailor-made chambers available
  • Advanced models offer temperature change rates from 3 to 15°C
  • Meet international test performance standards
  • Global support network with partners in Australia, Dubai, India, Malaysia, Turkey, and Vietnam
  • Two levels of overheat protection and one level of overcool protection
  • System controller provides alarm messages with troubleshooting assistance
Standard Features
  • Stainless #304 steel interior
  • Painted steel exterior
  • Foam-insulated door for rigidity and durability
  • Plastic water tank for easy maintenance
  • Observation window with frost-free function
  • High-performance refrigeration system
  • User-friendly TEMI-880 PLC controller interface

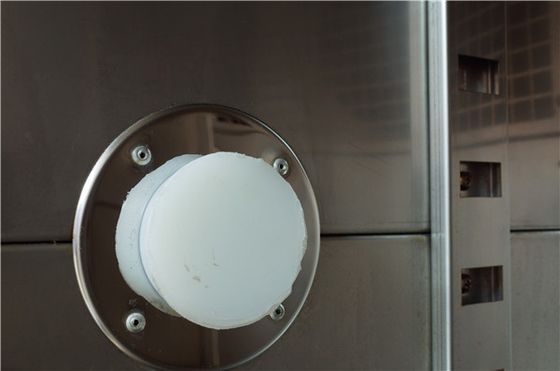

  • One 100mm cable port (customer specifications available)
  • One shelf with 10kg loading capacity
  • Includes 4 casters
  • Van Type Sirocco, L134, Fan
  • PID controlled stainless steel humidifier
  • DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40°C
  • USB port for data output
  • Anti-explosive interior lamps
  • Data logging chart recorders with paperless data storage in PLC
Technical Specifications
Temperature Range: -70°C to 150°C
Humidity Range: 10% to 95% RH
Temperature Fluctuation: ±0.5°C
Temperature Gradient: ±0.5°C to ±0.2°C
Heating Rate: ≥3°C/min average (Advanced model 5-15°C/min)
Cooling Rate: ≥1°C/min average (Advanced model 5-15°C/min)
Humidity Fluctuation: ±1.5% to ±2.0% RH
Humidity Gradient: ±3% RH
Performance Evaluation
For better assurance of performance for your temperature and humidity cycling application, we can provide a guaranteed performance calculation based on your submitted requirements. Please contact our lab consultants for a recommended model with appropriate refrigeration size.
System & Performance Options
  • Low and Ultra-Low Humidity Extensions
  • Water-cooling system
  • Dry Air Purge system for extremely low moisture
  • Additional shelves with 50kg loading capacity
  • Custom cable ports with flexible silicone plugs (50, 100, 150mm or customer-specific diameters)
Certified Environmental Test Chamber -70°C to 150°C 10-98% RH 0
Normal Humidity Range Diagram
Certified Environmental Test Chamber -70°C to 150°C 10-98% RH 1
Certified Environmental Test Chamber -70°C to 150°C 10-98% RH 2
