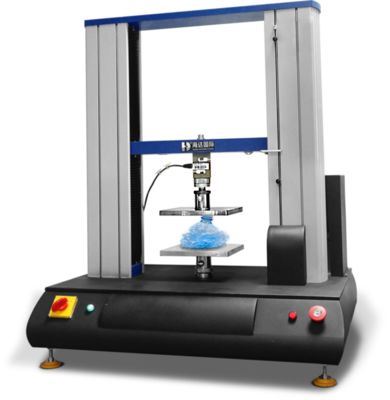

State-of-the-Art Paper Packaging Testing Instruments for Vertical Pressure Strength Testing

This instrument is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.

It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.

ISO1924/2, QB/T1670-92, GB/T2914, GB/T 453

Packaging Dimensions: (WxDxH) 1240 x 840x1320m

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 180kg

• Double-column ball screw drive to ensure the high-precision and stable operation of the instrument;
• The force value test system provides force value accuracy better than 1.0 level, and the test data is accurate;
• The system is embedded with a USB interface or network port, which is convenient for data transmission and external access of the system.
• Test speed can be adjusted in the software to adapt different test requirements from customers.

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
