Versatile Charge / Discharge Battery Testing System for Comprehensive Battery Performance Analysis

Versatile Charge / Discharge Battery Testing System for Comprehensive Battery Performance Analysis
Versatile Charge / Discharge Battery Testing System for Comprehensive Battery Performance Analysis

Großes Bild :  Versatile Charge / Discharge Battery Testing System for Comprehensive Battery Performance Analysis

Produktdetails:
Herkunftsort: CHINA
Markenname: Haida
Zertifizierung: CE,,ISO
Modellnummer: 922-HD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: Verhandelbar
Verpackung Informationen: Jeder Satz geschützt mit Harzfasern und PP -Film und dann mit Operation Man in eine starke hölzerne
Lieferzeit: 20 Tage nach Bestellung bestätigt
Zahlungsbedingungen: L/C, T/T, D/A, D/P, Western Union, Moneygram
Versorgungsmaterial-Fähigkeit: 300 Sätze pro Monat

Versatile Charge / Discharge Battery Testing System for Comprehensive Battery Performance Analysis

Beschreibung
Anwendung: Batterieprüfung Verdrahtungsmethode: AC-Drei-Phasen-Vierdraht
Anzeige: LCD Aktueller Bereich: 0-10A
Auflösung: 0,001 V/0,001a Verdrahtungsmethode: AC 220V
Genauigkeit: ± 0,1% Stromversorgung: AC
Hervorheben:

versatile battery testing system

,

charge discharge battery analyzer

,

battery performance testing system

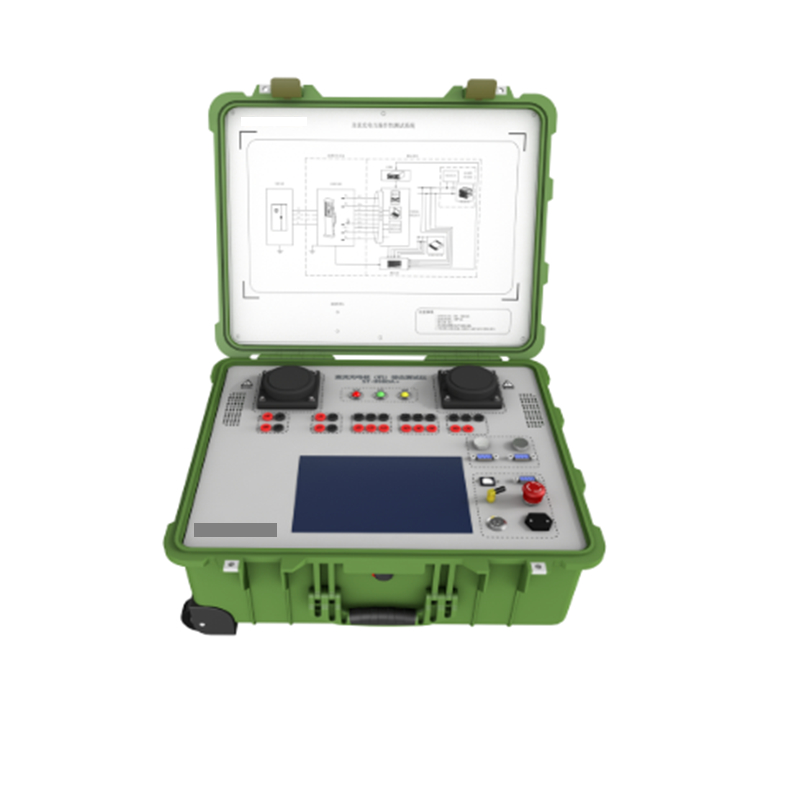

ST-9980A DC Charging Pile Comprehensive Tester, developed by Saiter, is a professional instrument designed to perform interoperability testing and communication protocol conformance verification in accordance with Chinese national standards. It is specifically used for third-party on-site testing and product acceptance inspection of off-board conductive chargers for electric vehicles. The tester is suitable for R&D activities by charger manufacturers and acceptance checks by third-party testing organizations. It is also widely used by charging facility producers for preliminary development, debugging, factory testing, and on-site acceptance of off-board conductive chargers.

Key Features
  • Supports interoperability testing, communication protocol conformance validation, BMS simulation, and optional metrological verification.

  • Offers multiple communication interfaces including LAN, RS232, and WIFI. Equipped with a built-in WIFI hotspot for remote wireless operation, facilitating convenient on-site usage.

  • Integrates a high-precision Hall sensor (standard accuracy of 0.1%; optional 0.05%) with a current range of 10–300A. Supports multiple verification methods through voltage/current test interfaces. Features a high-power output load gun holder for quick and efficient connection to external load equipment.

  • Accurately simulates the charging process and various fault conditions. Includes an auxiliary power supply system to ensure comprehensive testing, eliminating issues such as incomplete test coverage, operational inconvenience, time-consuming battery charging-discharging cycles, and reduced battery lifespan.

Specifications
Item Description
Product Name DC Charging Pile Comprehensive Tester
Model ST-9980A
Gun Holder Quantity 2 (DC 1000V/250A)
Test Target DC Charging Pile
R4 Equivalent Resistance 200–11000Ω (1Ω step)
Voltage/Current Sampling Accuracy ±0.5% RD (200V–1000V) / ±0.5% RD (10A–300A)
Auxiliary Power Voltage/Current Accuracy ±0.5% RD (30V) / ±1% RD (20A)
Operating Power Supply 100–240V AC, 50Hz; 35W
Communication Interfaces LAN, RS232, WIFI
Load Capacity No built-in load (external load device ≤250A)
Product Dimensions 561 * 455 * 265 mm (L * W * H)
Display 10.1-inch touch screen
PC Software Support Yes
Operating Environment Temperature: -20°C to 50°C; Storage: -30°C to 70°C; Humidity: ≤90% RH (10–30°C), ≤75% RH (30–40°C), ≤45% RH (40–50°C)
Compliant Standards GB/T 18487.1-2015, GB/T 20234.1-2015, GB/T 20234.3-2015, GB/T 27930-2015, GB/T 34658-2017, GB/T 34657.1-2017
Versatile Charge / Discharge Battery Testing System for Comprehensive Battery Performance Analysis 0
Technical Specifications
Interface Parameter Range Tolerance
CVBS Brightness level 0–700 mV ±(2%X + 6 mV)

Chromaticity level 0–885.1 mV ±3%

Chroma phase 0–360° ±1°
YPbPr Luminance (Y) 0–700 mV ±(2%X + 6 mV)

Color difference (Pb/Pr) -350–350 mV ±(2%X + 6 mV)
RF-ATV Level 70–120 dBμV ±3 dB

Frequency 47–862 MHz 0.001%
RF-DTV Level -60–0 dBm ±2 dB

Frequency 32–2196 MHz 0.0001%

Modulation error ratio >36 dB
Testing Applications
  • TV energy efficiency testing

  • Set-top box testing

  • Monitor testing

Included Accessories

BNC cables, adapters, DP-HDMI converters

Product Tags

TV test equipment, AV test equipment, TV signal tester
