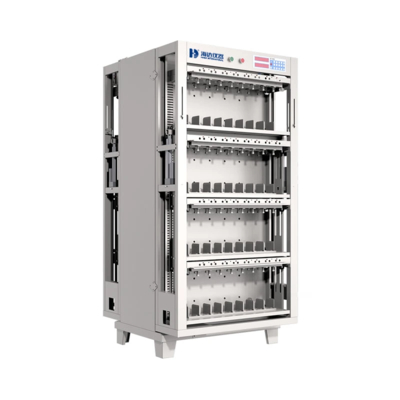

5V 3A Battery Formation& Grading Machine For Lithium ion Battery

5V 3A Battery Formation& Grading Machine For Lithium ion Battery
5V 3A Battery Formation& Grading Machine For Lithium ion Battery

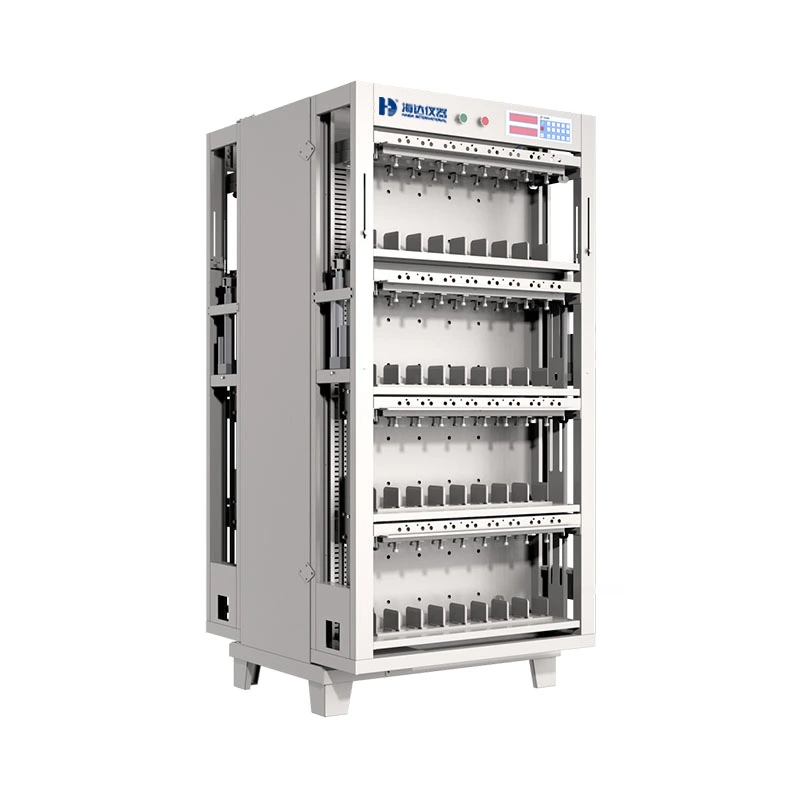

Großes Bild :  5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Produktdetails:
Herkunftsort: China
Markenname: Haida
Zertifizierung: CE,,ISO
Modellnummer: 8008-HD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: Verhandelbar
Verpackung Informationen: Jeder Satz geschützt mit Harzfasern und PP -Film und dann mit Operation Man in eine starke hölzerne
Lieferzeit: 20 Tage nach Bestellung bestätigt
Zahlungsbedingungen: L/C, T/T, D/A, D/P, Western Union, Moneygram
Versorgungsmaterial-Fähigkeit: 300 Sätze pro Monat

5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Beschreibung
Anwendung: Batterieprüfung Verdrahtungsmethode: AC-Drei-Phasen-Vierdraht
Anzeige: LCD Auflösung: 0,001 V/0,001a
Verdrahtungsmethode: AC 220V Gegenwärtige Entschließung: 1mA
Kommunikationsschnittstelle: RS232/RS485/USB/Ethernet Leistungsbereich: 0-50A
Stromspannung: 380V Netzfrequenz: 50 ± 5% Hz
Software: Enthalten Typ: Prüfungs-System
Thd: <5% Aktuelle Umschaltzeit: 20 ms ((-90%~90% F.S.)
Genauigkeit der Temperaturmessung: ± 1 ℃ Ausgangsstrom: Bei der Prüfung der Einhaltung der Vorschriften für die Berechnung der Leistungsgrenze für die Berec
Spannungsgenauigkeit: ± 0,02% F.S. Stromversorgungsspannung: 380 ± 10% VAC
Stromversorgung: AC 220 V/50 Hz Kapazität: 60 V bis 200 V, 100 V bis 1500 V
Gesamtausgangsleistung: 10 kW bis 120 kW Kabinettsgröße: 600*850*1980 (W*D*H mm)

5V 200A Battery Formation& Grading Machine

Power battery modules/packs (such as square aluminum shell LFP/NMC batteries): The capacity division current can reach 100A-500A, testing high voltage and high current performance for electric vehicles and power tools.



Product Description

Battery Formation& Grading Machine 5V 200A For Lithium ion Battery 5V 3A It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.


Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology . after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.

5V 3A Battery Formation& Grading Machine For Lithium ion Battery 0

Product Specifications

Model 8008-HD
Channels 32 Channels
Voltage Range DC0~5V
Voltage Accuracy 0.1mV
Output Current Range 200mA ~200A
Current Accuracy 0.1mA
Jig Form Push Down Four Wire Method Fixture
Fixture Spacing 162mm
Battery Type Prismatic Cell
Working Power Supply Three-Phase Five-Wire Ac380V±10%, 50Hz
Ac Current Distortion Rate ≤5%
Power Consumption ≤13Kw
Power Factor ≥0.99
Charging Efficiency Of Whole Machine ≥75%
Feeder Net Conversion Efficiency ≥70%
Equipment Failure Rate <1%
Work Environment Temperature -10 ~ 40℃, Relative Humidity ≤80%
Heat-Dissipating Method Natural Air Intake And Upward Exhaust
Control mode Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system
Communication mode 485 serial port communication (baud rate 57600)/TCP communication
Process setting Up to 32 steps and 256 cycles can be set
Charge voltage time Constant current, constant voltage, constant current constant voltage
Charge end conditions Voltage, current, time, capacity, -△V
Discharge mode Constant current, constant power, constant resistance
Discharge end conditions Voltage, time, capacity
Time range 0~3000 minutes/step, time unit is min
Time accuracy <+1%60

Product Characteristics

Accurate sorting to ensure battery consistency Capacity sorting

1. High-precision measurement: ±0.5‰ current/voltage accuracy

2. Intelligent grading: According to parameters such as capacity, internal resistance, and voltage, the battery is automatically graded

3. Performance verification

  -Cycle life test: Supports cyclic charging and discharging

  -Temperature simulation: Optional temperature control module (-40°C to +85°C) to test battery performance in extreme environments.

4. Data management

  Report generation: One-click export of PDF/Excel reports to meet quality certification requirements (such as IEC 62133, UL standards).
