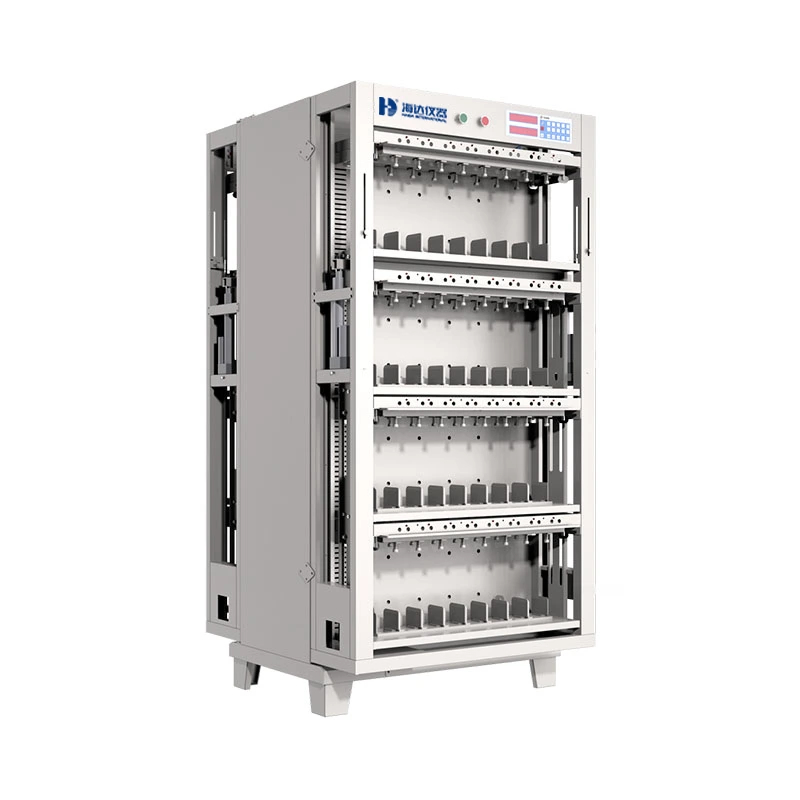

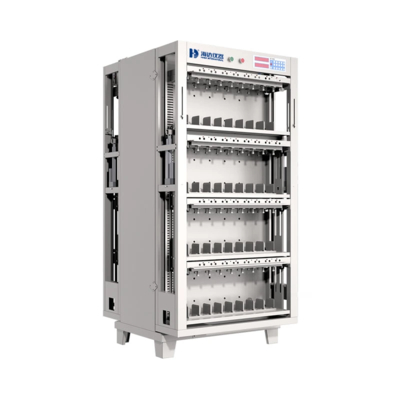

5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Großes Bild : 5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Produktdetails:

Herkunftsort:	China
Markenname:	Haida
Zertifizierung:	CE,,ISO
Modellnummer:	8004-HD

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	Verhandelbar
Verpackung Informationen:	Jeder Satz geschützt mit Harzfasern und PP -Film und dann mit Operation Man in eine starke hölzerne
Lieferzeit:	20 Tage nach Bestellung bestätigt
Zahlungsbedingungen:	L/C, T/T, D/A, D/P, Western Union, Moneygram
Versorgungsmaterial-Fähigkeit:	300 Sätze pro Monat

Kontakt

5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Beschreibung

Anwendung:	Batterieprüfung	Verdrahtungsmethode:	AC-Drei-Phasen-Vierdraht
Anzeige:	LCD	Leistungsbereich:	0-10A
Auflösung:	0,001 V/0,001a	Verdrahtungsmethode:	AC 220V
Genauigkeit:	± 0,1%	Stromversorgung:	AC

5V 20A Battery Formation& Grading Machine

Power battery modules/packs (such as square aluminum shell LFP/NMC batteries): The capacity division current can reach 100A-500A, testing high voltage and high current performance for electric vehicles and power tools.

Model: 8004-HD

Product Description

Battery Formation& Grading Machine For Lithium ion Battery 5V 3A It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.

Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology . after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.

Product Specifications

Model	8004-HD
Channels	128 Channels
Voltage Range	DC0~5V
Voltage Accuracy	0.1mV
Output Current Range	100mA ~20A
Current Accuracy	0.1mA
Jig Form	Push Down Four Wire Method Fixture
Fixture Spacing	81mm
Battery Type	Prismatic Cell and Prismatic Aluminum Shell
Working Power Supply	Three-Phase Five-Wire Ac380V±10%, 50Hz
Ac Current Distortion Rate	≤5%
Power Consumption	≤13Kw
Power Factor	≥0.99
Charging Efficiency Of Whole Machine	≥75%
Feeder Net Conversion Efficiency	≥70%
Equipment Failure Rate	<1%
Work Environment	Temperature -10 ~ 40℃, Relative Humidity ≤80%
Heat-Dissipating Method	Natural Air Intake And Upward Exhaust
Control mode	Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system
Communication mode	485 serial port communication (baud rate 57600)/TCP communication
Process setting	Up to 32 steps and 256 cycles can be set
Charge voltage	time Constant current, constant voltage, constant current constant voltage
Charge end conditions	Voltage, current, time, capacity, -△V
Discharge mode	Constant current, constant power, constant resistance
Discharge end conditions	Voltage, time, capacity
Time range	0~3000 minutes/step, time unit is min
Time accuracy	<+1%60

Product Characteristics

Accurate sorting to ensure battery consistency Capacity sorting

High-precision measurement: ±0.5‰ current/voltage accuracy
Intelligent grading: According to parameters such as capacity, internal resistance, and voltage, the battery is automatically graded
Performance verification
- Cycle life test: Supports cyclic charging and discharging
- Temperature simulation: Optional temperature control module (-40°C to +85°C) to test battery performance in extreme environments.
Data management
- Report generation: One-click export of PDF/Excel reports to meet quality certification requirements (such as IEC 62133, UL standards).
