Somerville Sieve Content Analyzer HD-P001 for Pulp Testing

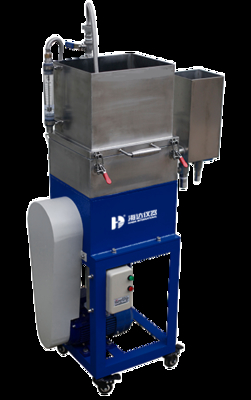

Großes Bild : Somerville Sieve Content Analyzer HD-P001 for Pulp Testing

Produktdetails:

Place of Origin:	China
Markenname:	Haida
Zertifizierung:	CE、ISO
Model Number:	HD-P001

Zahlung und Versand AGB:

Minimum Order Quantity:	1 set
Preis:	Verhandelbar
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Kontakt

Somerville Sieve Content Analyzer HD-P001 for Pulp Testing

Beschreibung

Function:	compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument	Name:	paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display:	LCD,Digital display	Feature:	easy to operate
Operation Method:	Automatic	Product Type:	Testing Instruments
Protection Device:	Induction type protection device	Control:	PLC control
Sensing Method:	Pressure Transmitter	Stop:	Stop test
Force Resolution:	1/500000 of the maximum test force fs	Sample Size:	100(L)×63(W)mm
Dropping Height:	300mm-1500mm	Vibration Mode:	reciprocating
Test Cycles Setting:	4 digits pre-set counter
Hervorheben:	Pulp Testing Sieve Content Analyzer , HD-P001 Sieve Content Analyzer , Somerville Sieve Content Analyzer

HD-P001 Sommerville Sieve Content Analyzer

Product Specifications

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name	Paper cup tube compressive strength tester, Paper testing instrument paper GSM tester/bursting strength tester
Display	LCD, Digital display
Feature	Easy to operate
Operation Method	Automatic
Product Type	Testing Instruments
Protection Device	Induction type protection device
Control	PLC control
Sensing Method	Pressure Transmitter
Stop	Stop test
Force Resolution	1/500000 of the maximum test force FS
Sample Size	100(L)×63(W)mm
Dropping Height	300mm-1500mm
Vibration Mode	Reciprocating
Test Cycles Setting	4 digits pre-set counter

Product Description

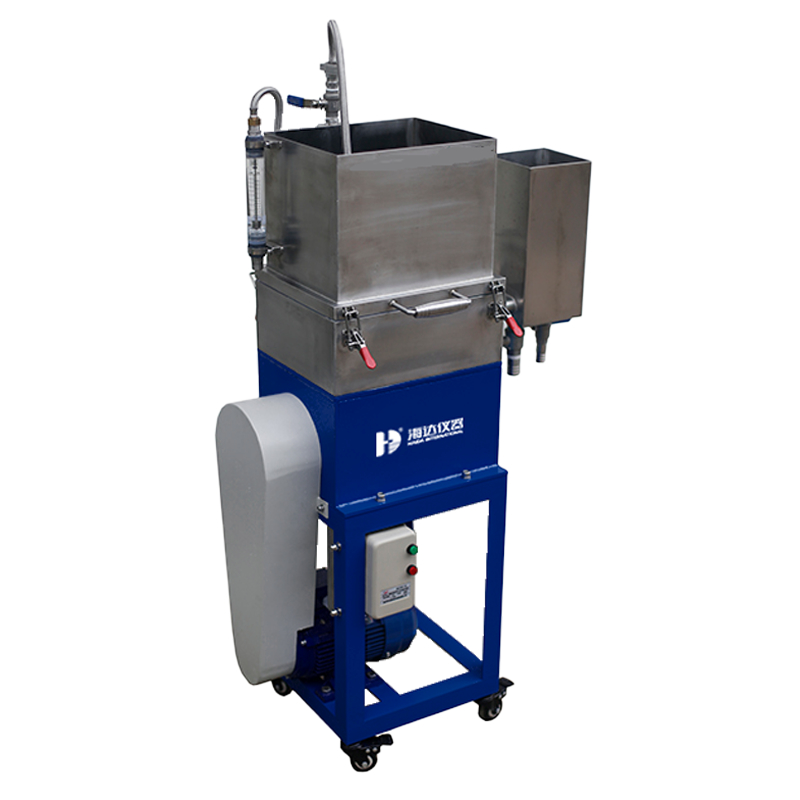

The HD-P001 Sommerville Sieve Content Analyzer is a laboratory-specific pulp screening equipment that separates large sticky matter, plastic, sediment, iron filings, and other impurities in the pulp through the up and down vibration of the screen plate.

Application

This machine checks and quantifies impurities in pulp samples through vibration screening, conforming to TAPPI 275 standards.

Standard Features

Sieve plate size	307mm×268mm
Screen slit	Length 45 mm, width 0.15 mm
Specification of sieve plate sieve slit	0.15mm
Rubber membrane and actuation: Amplitude	3.2 ± 0.1mm eccentric actuation at 690-700 rpm
Water flow rate control	8.6 L/min. Water pressure: 1.23 Kg/cm²
Dimensions	7204101150mm
Other optional sieve plate sieve slot specifications	0.15mm, 0.2mm, 0.3mm, 0.35mm, 0.4mm
