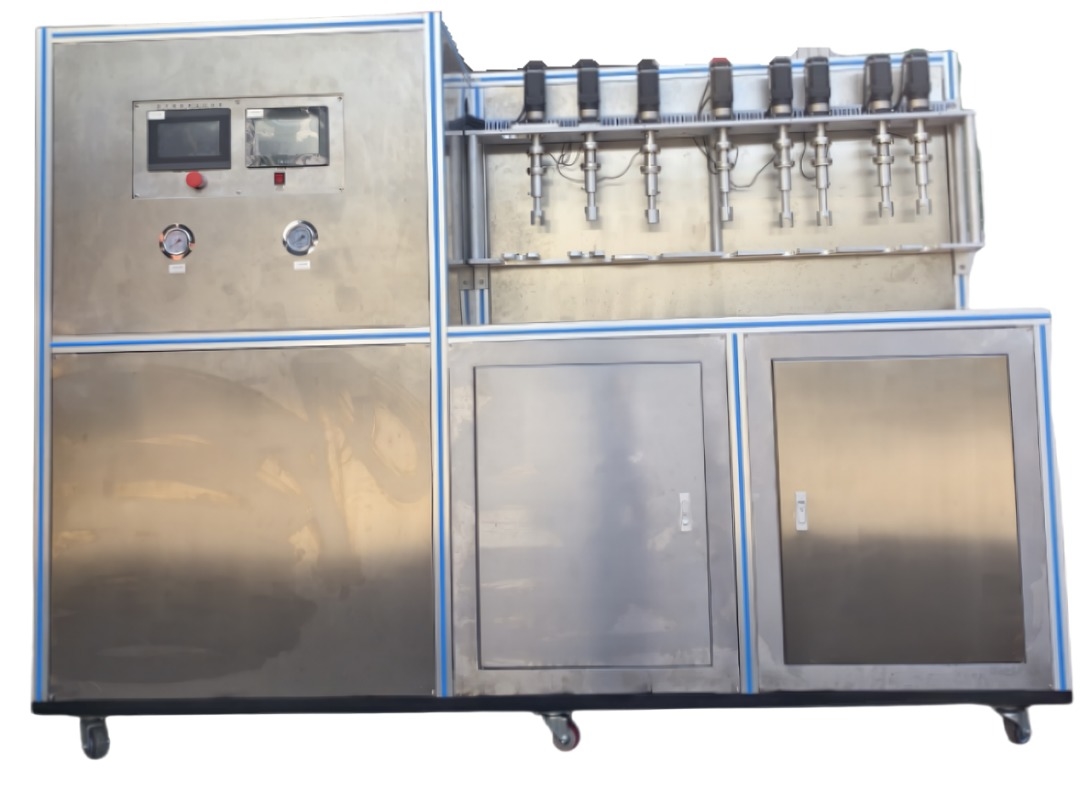

Sanitary Tapware Quick-On Valve Cartridge Life Test Machine

Großes Bild : Sanitary Tapware Quick-On Valve Cartridge Life Test Machine

Produktdetails:

Place of Origin:	China
Markenname:	Haida
Zertifizierung:	ISO
Model Number:	5074-HD

Zahlung und Versand AGB:

Minimum Order Quantity:	1 set
Preis:	Verhandelbar
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability:	30 Sets per Month

Kontakt

Sanitary Tapware Quick-On Valve Cartridge Life Test Machine

Beschreibung

heat source:	Ceramic heater	touch screen:	LCD
Display:	LCD screen	Testing Time:	Adjustable
Customized:	Welcome	Test Cyclic:	15000 cyclic (adjustable)
Factory:	Yes	Application:	Laboratory, Kitchen
Transportation:	By Sea	Tank Body Matiral:	PVC
Testing Methods:	Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc.	Testing Parameters:	Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc.
Fixture:	two fixtures suitable different cutlery	Weight:	Unspecified
Torque Rod Diameter:	10±1mm	Horizontal Test Floor:	angle is justable
Scale Resolution:	1°	Temperature Range:	Room temperature to 300°C
Test Stroke:	20~66mm	Leverage:	1 m
Customer:	More than 500+	Test Load:	50N
Dimensions:	1100mm532mm389mm	Clamp Strength:	130 + 2.5N
Power Supply:	AC 220V, 50Hz
Hervorheben:	Cartridge Life Test Machine , Sanitary Tapware Test Machine , Cartridge Life Test Machine

5074-HD Sanitary Tapware Quick-On Valve Cartridge Life Test Machine

Product Specifications

Attribute	Value
Heat Source	Ceramic heater
Display	LCD screen
Testing Time	Adjustable
Test Cyclic	15000 cyclic (adjustable)
Application	Laboratory, Kitchen
Testing Methods	Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc.
Testing Parameters	Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc.
Temperature Range	Room temperature to 300°C
Test Load	50N
Dimensions	1100mm × 532mm × 389mm
Power Supply	AC 220V, 50Hz

Applications & Test Purpose

This machine is designed to conduct the life test of quick-opening valve cores under test conditions specified in ASMEA112.18.1-2005/CSAB125.1-05/GB18145 and EN817 standards.

Standard Features

Test Sample: 4 inch quick open × 2 pcs, 8 inch quick open × 2 pcs
Plumbing Units: 1 Set 500L
Temperature Range: 5℃ ~ 90℃ (individually selectable for hot and cold)
Operating Time: 99H59M59S (configurable with pause function)
Test Speed: 0-30 times/min adjustable
Counting Function: 0-99999999 cycles
Control Mode: PLC software with 7" color touch screen
Material: SUS304 stainless steel construction
Independent control of product movements (up/down, left/right)

Product Images

Customer Testimonials

Why Choose Haida International Equipment?

Design & Production: Custom solution consultation and R&D for special requirements
Shipping & Delivery: Complete one-stop service from production to installation
Warranty: 1 year warranty with lifetime technical support
After-Sale Service: Rapid response within 2 hours with video inspection and on-site support

Frequently Asked Questions

Q: How about your warranty?

A: We offer a one-year warranty with technical support and replacement parts. Our engineers can provide on-site service when necessary.

Q: What is the order process?

A: Our process includes inquiry, quotation confirmation, production, testing, shipping, and after-sales support.

Q: Can we visit your factory before ordering?

A: Yes, we welcome factory visits and can assist with travel arrangements.

Q: Do you accept customization?

A: We provide both standard and fully customized machines to meet specific testing requirements.
