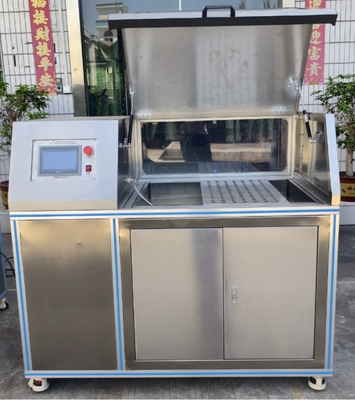

Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa

Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa
Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa

Großes Bild :  Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa

Produktdetails:
Place of Origin: China
Markenname: Haida
Zertifizierung: ISO
Model Number: 5073-HD
Zahlung und Versand AGB:
Minimum Order Quantity: 1 set
Preis: Verhandelbar
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month
Kontakt

Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa

Beschreibung
heat source: Ceramic heater touch screen: LCD
Display: LCD screen Testing Time: Adjustable
Customized: Welcome Test Cyclic: 15000 cyclic (adjustable)
Factory: Yes Application: Laboratory, Kitchen
Transportation: By Sea Tank Body Matiral: PVC
Testing Methods: Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc. Testing Parameters: Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc.
Fixture: two fixtures suitable different cutlery Weight: Unspecified
Leverage: 1 m Torque Rod Diameter: 10±1mm
Usage: Testing Cookware Power: 1 phase, AC 220V, 50～60Hz
Customer: More than 500+ Temperature Range: Room Temperature - 300°C
Test Load: 50N Clamp Strength: 130 + 2.5N
Heating Method: Electric Heating Applicable Standards: EN ISO 8442-5
Test Mass: 1KG Scale Display: 1 degree
Hervorheben:

Water Pressure Burst Test Machine

,

Sanitary Tap Water Pressure Test Machine

,

0-6.0MPa Burst Test Machine

5073-HD Sanitary Tap Water Pressure Burst Test Machine
Product Specifications
Attribute Value
Heat Source Ceramic heater
Display LCD touch screen
Testing Time Adjustable
Test Cyclic 15000 cyclic (adjustable)
Application Laboratory, Kitchen
Tank Body Material PVC
Testing Methods Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test
Testing Parameters Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion
Power 1 phase, AC 220V, 50～60Hz
Temperature Range Room Temperature - 300°C
Applicable Standards EN ISO 8442-5
Applications & Test Purpose

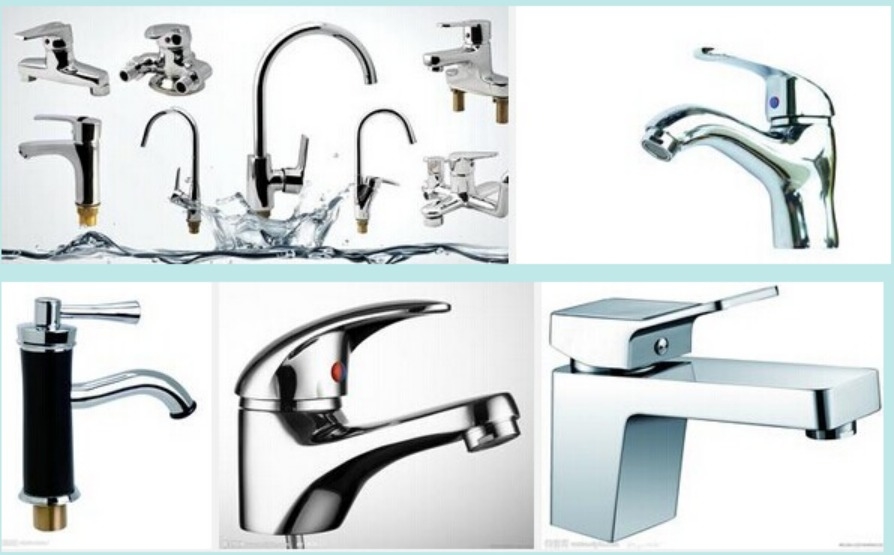

This machine is designed for faucets to undergo flow cycle tests under different temperature changes (hot and cold) to evaluate product quality. It features a burst test pressure range of 0 to 6.0Mpa, using a booster pump as the pressure source with infinitely adjustable pressure settings.
Key Features
  • Power-off protection function for test continuity
  • Weld-free connection with conical surface sealing for safety and reliability
  • Automatic pressure compensation during testing
  • Touch screen control for entire test process
  • Automatic pressure release when holding time is reached
  • Rapid pressure drop and pressurizing stop upon specimen rupture
Technical Specifications
Parameter Specification
Burst strength test medium Water
Test pressure range 0-6.0MPa
Pressure accuracy 0.01Mpa
Holding pressure time 0-9999 seconds (adjustable)
Test medium temperature Room temperature
Voltage 380V, 50HZ
Power 3KW
Additional Features
  • Two water outlets with three-way connectors for versatile testing
  • Automatic water replenishment function
  • Cleaning system with additional drainage
  • Placement rack/panel for sample observation
  • Self-developed software for data recording and analysis
Product Images
Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa 0 Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa 1 Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa 2 Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa 3
Customer Testimonials
Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa 4 Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa 5
Why Choose Haida International Equipment?
  • Design & Production: Custom solution consultation and cost-performance recommendations
  • Shipping & Delivery: Complete one-stop service from production to installation
  • Warranty: 1 year warranty with lifetime technical support
  • After-Sale Service: Quick response within 2 hours with video inspection options
Frequently Asked Questions
What is your warranty policy?
We offer a one-year warranty with technical support and parts replacement. Our engineers can provide on-site service when necessary.
What is your order process?
Our process includes inquiry, quotation, requirements confirmation, payment, production, testing, shipping, and after-sales service.
Can we visit your factory before ordering?
Yes, we welcome factory visits and can assist with hotel arrangements and airport transfers.
Do you offer customization services?
We provide both standard and customized machines tailored to your specific testing requirements.
About Haida International Equipment
Established in 2004 and located in Dongguan, China, Haida specializes in the production and R&D of material testing equipment. With our own R&D center and four dedicated production lines (textile, footwear, leather, and mask testing equipment), we've been serving international markets since 2006.
