Non-Metallic Insulating Materials Tested With Flammability Testing Equipment

Non-Metallic Insulating Materials Tested With Flammability Testing Equipment
Non-Metallic Insulating Materials Tested With Flammability Testing Equipment

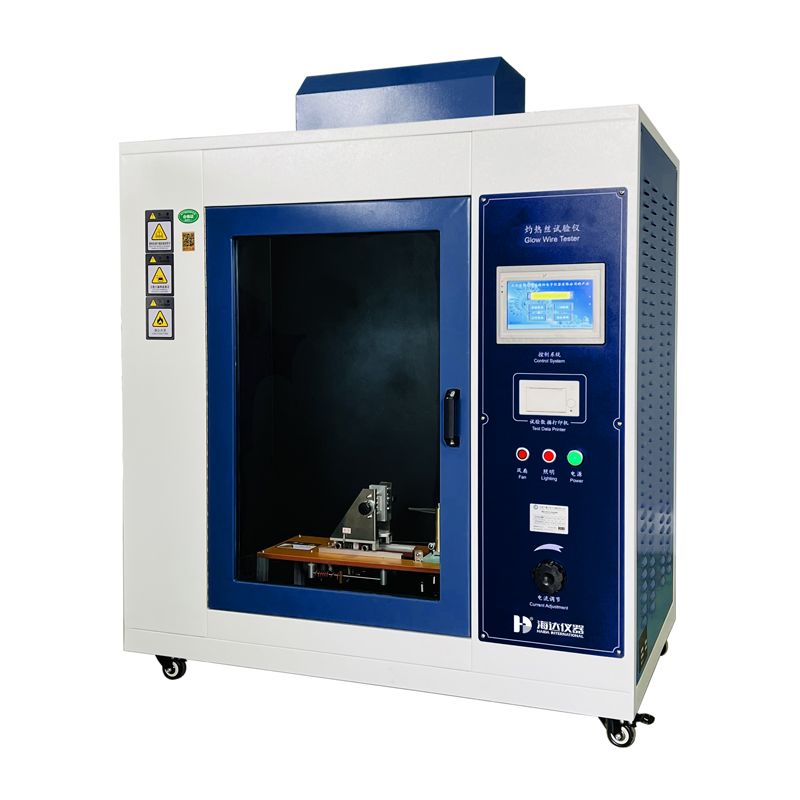

Großes Bild :  Non-Metallic Insulating Materials Tested With Flammability Testing Equipment

Produktdetails:
Herkunftsort: China
Markenname: Haida
Zertifizierung: CE,,ISO
Modellnummer: 6002-HD
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: Verhandelbar
Verpackung Informationen: Jedes Set mit Harzfaser und PP-Film geschützt, dann in starke Holzgehäuse mit Operation Mann
Lieferzeit: 20 Tage nach Bestellbestätigung
Zahlungsbedingungen: Akkreditiv, T/T, D/A, D/P, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 300 Stück pro Monat

Non-Metallic Insulating Materials Tested With Flammability Testing Equipment

Beschreibung
Volumen der Kammer: ≥ 0,5 m3, mit einer Glasbeobachtungstür. Stromversorgung: Wechselstrom 220V,50Hz,1KVA
Innere Beleuchtung: Weniger als 20 Lux. Bewegungsgeschwindigkeit der Leuchtdrahtspitze: 10 mm/s bis 25 mm/s (Nachzug oder Rückzug von der Probe)
Hervorheben:

Flammability Testing Equipment

,

1KVA Flammability Testing Equipment

Glow-Wire Tester
Product Description


The glow-wire test simulates thermal stress or ignition sources caused by overheated components or overloaded resistors in a short period, assessing fire hazards for parts or components under fault or overload conditions. It applies to plastic and non-metallic insulating materials used in electrical and electronic products, components, and household appliance parts, such as switch housings and relay sockets. This tester features a PLC + color LCD touchscreen control system with an intuitive interface and includes a built-in printer for recording test conditions and results.

Test Standard

IEC60695-2-10 / 11 / 12 / 13 - 2013, GB/T 5169.10, GB/T 5169.11, IEC 60884-1, GB 2099.1, IEC 60335-1, GB 4706.1, VDE 0620-1
Product Specifications

Model 6002-HD
Control System 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with a test data printer.
Display System 7-inch color LCD touchscreen for setting and displaying glow time (Ta), ignition time (Ti), flame extinction time (Te), glow-wire temperature, print interface, and operational status.
Chamber Volume ≥0.5 m³, with a glass observation door.
Internal Illuminance Less than 20 Lux.
Glow-Wire Temperature Adjustable from ambient + 10°C to 1000°C, measured using a Ø1mm nickel-chromium armored (K-type) imported thermocouple.
Force Applied to Sample 0.95 ± 0.10 N, with a penetration depth limited to 7.0 ± 0.5 mm (automatically sensed).
Glow-Wire Made of nickel/chromium alloy (>77% Ni / 20±1% Cr). The diameter before bending is 4.0 ± 0.07 mm, with other dimensions manufactured to standard tolerances.
Movement Speed of Glow-Wire Tip 10 mm/s to 25 mm/s (approaching or retracting from the sample).
Wooden Board White pine board, thickness >10 mm, placed 200±5 mm below the sample contact point.
Timer Adjustable range: 0-999.9 seconds, accuracy: ±0.1 seconds. Glow time (Ta) is settable, while ignition duration (Ti) and flame extinction time (Te) are recordable.
Key Features Automated control system. After initiation, the sample carriage automatically moves the specimen to the glow-wire and retracts after the set glow time. Features black interior, ventilation, lighting, and digital displays for easy observation and recording.
Power Supply AC 220V, 50Hz.
Non-Metallic Insulating Materials Tested With Flammability Testing Equipment 0










About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Non-Metallic Insulating Materials Tested With Flammability Testing Equipment 1Non-Metallic Insulating Materials Tested With Flammability Testing Equipment 2Non-Metallic Insulating Materials Tested With Flammability Testing Equipment 3


Non-Metallic Insulating Materials Tested With Flammability Testing Equipment 4Non-Metallic Insulating Materials Tested With Flammability Testing Equipment 5

Non-Metallic Insulating Materials Tested With Flammability Testing Equipment 6



After-Service:

Should any issues arise during your testing process, we guarantee:

Timely Response: A formal reply within 48 hours.

Swift Resolution: A proposed solution within 3 working days.

Comprehensive Support: Access to English operation manuals, instructional videos, and video conference assistance.





Why Choose Us?

Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.

Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.

Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.

Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection

FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
